MSTBA 2,5/ 3-GU BK

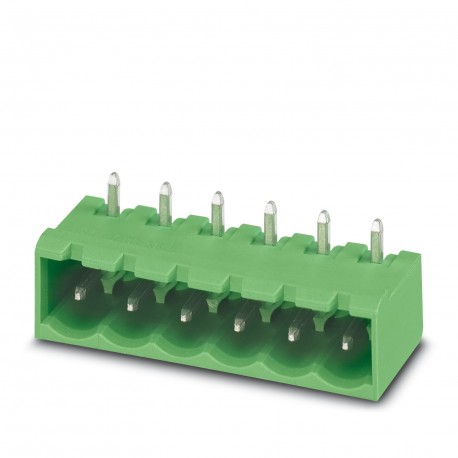

MSTBA 2,5/ 3-GU BK 1747889 PHOENIX CONTACT Feed-through header
$0.00USD
3646 in stock
Key Specifications
Note:WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Pitch:5 mm
Width [w]:17 mm
Height [h]:11.8 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Pitch | 5 mm |
| Width [w] | 17 mm |
| Height [h] | 11.8 mm |
| Length [l] | 12 mm |
| Pin layout | Linear pinning |
| Product line | COMBICON Connectors M |
| Product type | PCB headers |
| Hole diameter | 1.4 mm |
| Mounting type | Wave soldering |
| Specification | IEC 60664-1:2007-04 |
| Number of rows | 1 |
| Pin dimensions | 1 x 1 mm |
| Product family | MSTBA 2,5/..-GU |
| Color (Housing) | black (9005) |
| Mounting flange | without |
| Article revision | 01 |
| Contact material | Cu alloy |
| Installed height | 8.57 mm |
| Type of packaging | packed in cardboard |
| Nominal current IN | 12 A |
| Nominal voltage UN | 320 V |
| Notes on operation | In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
| Dimensional drawing | |
| Insulating material | PBT |
| Number of positions | 3 |
| Number of potentials | 3 |
| Rated voltage (II/2) | 400 V |
| Number of connections | 3 |
| Rated voltage (III/2) | 320 V |
| Rated voltage (III/3) | 250 V |
| Solder pin length [P] | 3.23 mm |
| Surface characteristics | Tin-plated |
| Insulating material group | IIIa |
| Solder pins per potential | 1 |
| CTI according to IEC 60112 | 225 |
| Rated surge voltage (II/2) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (III/3) | 4 kV |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 100 °C (dependent on the derating curve) |
| Rated insulation voltage (II/2) | 400 V |
| Rated insulation voltage (III/2) | 320 V |
| Rated insulation voltage (III/3) | 250 V |
| minimum creepage distance (II/2) | 4 mm |
| minimum creepage distance (III/2) | 3.2 mm |
| minimum creepage distance (III/3) | 4 mm |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Flammability rating according to UL 94 | V0 |
| Metal surface contact area (top layer) | Tin (3 - 5 µm Sn) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Comparative tracking index (IEC 60112) | CTI 225 |
| Metal surface soldering area (top layer) | Tin (3 - 5 µm Sn) |
| Metal surface contact area (middle layer) | Nickel (1.3 - 3 µm Ni) |
| Metal surface soldering area (middle layer) | Nickel (1.3 - 3 µm Ni) |
| minimum clearance value - non-homogenous field (II/2) | 3 mm |
| minimum clearance value - non-homogenous field (III/2) | 3 mm |
| minimum clearance value - non-homogenous field (III/3) | 3 mm |
Product Description
Printed circuit board base case, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 3, numbe
