MSTBA 2,5/10-GR-5,08 BK

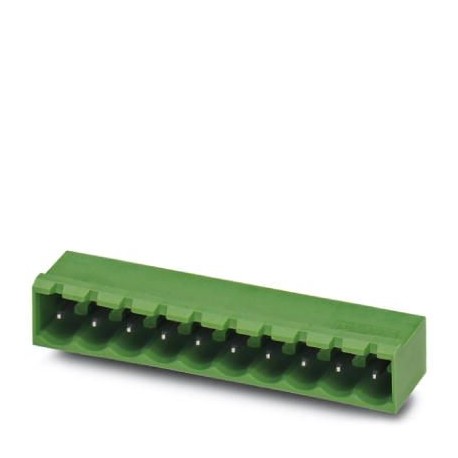

MSTBA 2,5/10-GR-5,08 BK 1860155 PHOENIX CONTACT Printed-circuit board connector
$0.00USD
3121 in stock
Key Specifications
GTIN:4017918265496
Note:Made to Order (non-returnable)
Orderkey:1860155
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918265496 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1860155 |
| Packing unit | 50 pc |
| Country of origin | DE (Germany) |
| Color (Dimensions) | black |
| Custom tariff number | 85366990 |
| Pitch (Key Commercial Data) | 5.08 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 9 mm |
| Range of articles (Dimensions) | MSTBA 2,5/..-G |
| Nominal current IN (Dimensions) | 12 A |
| Number of positions (Dimensions) | 10 |
| Dimension a (Key Commercial Data) | 45.72 mm |
| Rated voltage (III/3) (Dimensions) | 250 V |
| Pin dimensions (Key Commercial Data) | 1 x 1 mm |
| Weight per Piece (excluding packing) | 4.240 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection in acc. with standard (General) | EN-VDE |
| Connection in acc. with standard (Dimensions) | EN-VDE |
| Length of the solder pin (Key Commercial Data) | 3.5 mm |
Product Description
Printed circuit board base housing, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 10, n
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
