MSTB 2,5/ 3-ST-5,08RDBD54-52SO

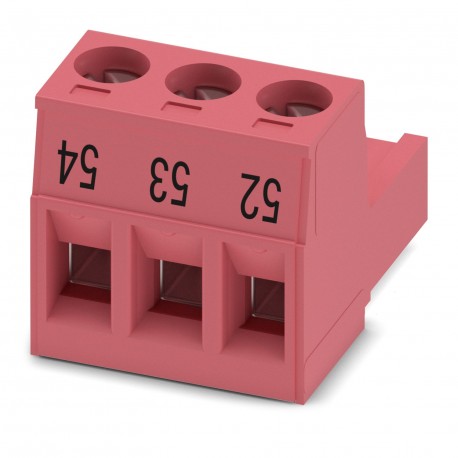

MSTB 2,5/ 3-ST-5,08RDBD54-52SO 1712666 PHOENIX CONTACT Connector for printed circuit board, number of poles:..
$0.00USD
4004 in stock
Key Specifications
GTIN:4055626497983
Orderkey:1712666
(General):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
(Drawings):
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626497983 |
| Orderkey | 1712666 |
| (General) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| (Drawings) | |
| Packing unit | 1 |
| Pitch (Drawings) | 5.08 mm |
| ETIM 5.0 (eCl@ss) | EC002638 |
| ETIM 6.0 (eCl@ss) | EC002638 |
| ETIM 7.0 (eCl@ss) | EC002638 |
| China RoHS (General) | Environmentally Friendly Use Period = 50 years |
| Custom tariff number | 85366990 |
| REACh SVHC (General) | Lead 7439-92-1 |
| Dimension a (Drawings) | 10.16 mm |
| Width [ w ] (Drawings) | 15.24 mm |
| Height [ h ] (Drawings) | 15 mm |
| Length [ l ] (Drawings) | 18.3 mm |
| eCl@ss 4.0 (Classifications) | 27260700 |
| eCl@ss 4.1 (Classifications) | 27260700 |
| eCl@ss 5.0 (Classifications) | 27260700 |
| eCl@ss 5.1 (Classifications) | 27260700 |
| eCl@ss 6.0 (Classifications) | 27260700 |
| eCl@ss 7.0 (Classifications) | 27440309 |
| eCl@ss 8.0 (Classifications) | 27440309 |
| eCl@ss 9.0 (Classifications) | 27440309 |
| Connection method (Dimensions) | Screw connection with tension sleeve |
| Range of articles (Dimensions) | MSTB 2,5/..-ST |
| Number of positions (Dimensions) | 3 |
| Nominal cross section (Dimensions) | 2.5 mm² |
Product Description
Connector for printed circuit board, nominal section: 2.5 mm², color: red, nominal current: 12 A, dimensioning voltage (III/2): 320 V, contact surface: Tin, contact type: Female connection, Number of
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
DiagramType: MSTB 2,5/...-ST-5,08 RDB with CCVA 2,5/...-G-5,08 P26THR
