MSMF5AZL1S2

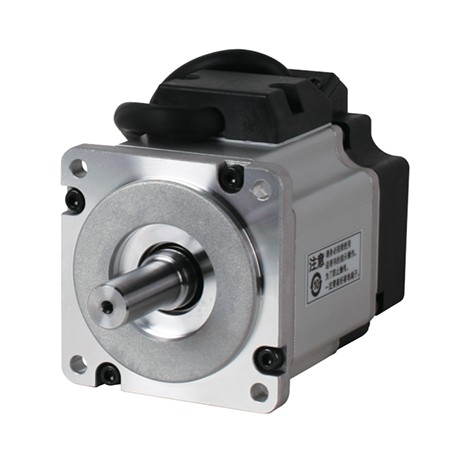

MSMF5AZL1S2 PANASONIC Motor MINAS A6, 50W, low inertia, 0.16Nm, 3000rpm, 200V class, key-way shaft, leadwire..
$0.00USD
4542 in stock
Key Specifications
Item:Specifications
Type:Low inertia
Shaft:Key-way, center tap
Notice:When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Type | Low inertia |
| Shaft | Key-way, center tap |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Series | MSMF Series |
| Details | Low inertia, Lead wire type |
| Product | Servo Motor |
| Features | More compact, more faster and more easy-to-use Servomotors that meet the demands of the present age. |
| Oil seal | without |
| Enclosure | IP65 |
| Mass (kg) | 0.32 |
| Family Name | MINAS A6 |
| Part Number | MSMF5AZL1S2 |
| Product name | MINAS A6 Family Servo Motor |
| Rated output | 50 W |
| Holding brake | without |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Flange sq. dimension | 38 mm sq. |
| Max. current (A (o-p)) | 4.7 |
| Rated torque (N ⋅ m) | 0.16 |
| Voltage specifications | 100 V/200 V common |
| Motor encoder connector | Lead wire |
| Rated current (A (rms)) | 1.1 |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Rotary encoder: Resolution | 8388608 |
| Power supply capacity (kVA) | AC100 V : 0.4 kVAAC200 V : 0.5 kVA |
| Motor lead-out configuration | Lead wire |
| Flange sq. dimension (Unit:mm) | 38 |
| Rated rotational speed (r/min) | 3000 |
| Rotary encoder: specifications | 23-bit Absolute/Incremental system |
| Continuous stall torque (N ⋅ m) | 0.16 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational Max. speed (r/min) | 6000 |
| Momentary Max. peak torque (N ⋅ m) | 0.48 |
| Regenerative brake frequency (times/min) | Without option :No limitWith option :No limitOption (External regenerative resistor) Part No. : DV0P4280 (For AC100 V) , DV0P4281 (For AC200 V) |
| Moment of inertia of rotor ( x10-4kg ⋅ m²) | 0.026 |
| Recommended moment of inertia ratio of the load and the rotor | 30 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
