MSMF082L1A2

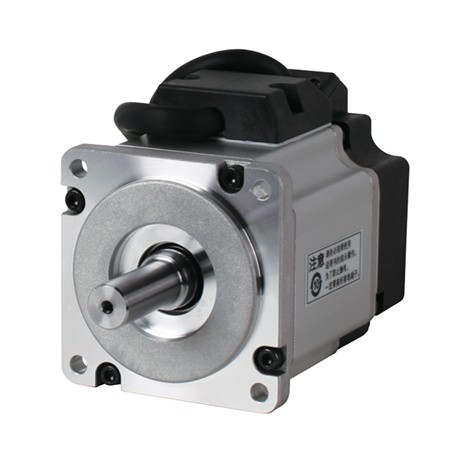

MSMF082L1A2 PANASONIC Motor MINAS A6, 750W, low inertia, 2.39Nm, 3000rpm, round shaft, Kabelanschluss
$0.00USD
3298 in stock
Key Specifications
Item:Specifications
Type:Low inertia
Shaft:Round
Notice:When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Type | Low inertia |
| Shaft | Round |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Series | MSMF Series |
| Details | Low inertia, Lead wire type |
| Product | Servo Motor |
| Features | More compact, more faster and more easy-to-use Servomotors that meet the demands of the present age. |
| Oil seal | without |
| Enclosure | IP65 |
| Mass (kg) | 2.3 |
| Family Name | MINAS A6 |
| Part Number | MSMF082L1A2 |
| Product name | MINAS A6 Family Servo Motor |
| Rated output | 750 W |
| Holding brake | without |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Flange sq. dimension | 80 mm sq. |
| Max. current (A (o-p)) | 17.4 |
| Rated torque (N ⋅ m) | 2.39 |
| Voltage specifications | 200 V |
| Motor encoder connector | Lead wire |
| Rated current (A (rms)) | 4.1 |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Rotary encoder: Resolution | 8388608 |
| Power supply capacity (kVA) | 1.3 |
| Motor lead-out configuration | Lead wire |
| Flange sq. dimension (Unit:mm) | 80 |
| Rated rotational speed (r/min) | 3000 |
| Rotary encoder: specifications | 23-bit Absolute/Incremental system |
| Continuous stall torque (N ⋅ m) | 2.39 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational Max. speed (r/min) | 6000 |
| Momentary Max. peak torque (N ⋅ m) | 7.16 |
| Regenerative brake frequency (times/min) | Without option :No limitWith option :No limitOption (External regenerative resistor) Part No. : DV0P4283 |
| Moment of inertia of rotor ( x10-4kg ⋅ m²) | 0.96 |
| Recommended moment of inertia ratio of the load and the rotor | 20 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
Product Description
MINAS A6 servomotor, 750 W (2.39Nm), low inertia, 3,000 rpm, incremental & absolute encoder 23 bits, smooth shaft (AMP cable connection).
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
