MSME012G1S

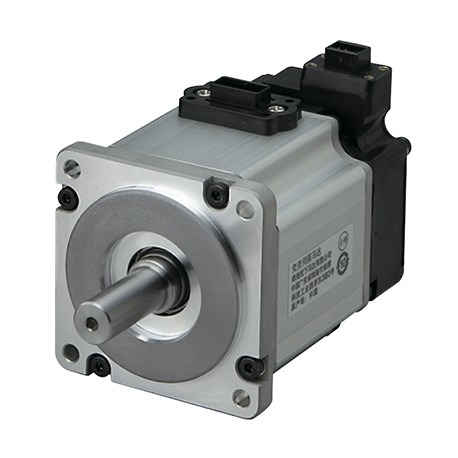

MSME012G1S PANASONIC Motor MINAS A5, 100W, low inertia, 0.32Nm, 3000rpm, 200V class, key-way shaft
$0.00USD
3408 in stock
Key Specifications
Item:Specifications
Type:Low inertia
Shaft:Key-way, center tap
Series:MSME Series
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Type | Low inertia |
| Shaft | Key-way, center tap |
| Series | MSME Series |
| Details | Low inertia, Connector type, IP67 |
| Product | Servo Motor |
| Features | Servo motor that bring out potential of the machine. |
| Oil seal | without |
| Enclosure | IP67 |
| Mass (kg) | 0.46 |
| Family Name | MINAS A5 |
| Part Number | MSME012G1S |
| Product name | MINAS A5 Family Servo Motor |
| Rated output | 100 W |
| Holding brake | without |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Flange sq. dimension | 38 mm sq. |
| Max. current (A (o-p)) | 4.7 |
| Rated torque (N â‹… m) | 0.32 |
| Voltage specifications | 200 V |
| Motor encoder connector | Connector |
| Rated current (A (rms)) | 1.1 |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Rotary encoder: Resolution | 1048576 |
| Power supply capacity (kVA) | 0.5 |
| Motor lead-out configuration | Connector |
| Flange sq. dimension (Unit:mm) | 38 |
| Rated rotational speed (r/min) | 3000 |
| Rotary encoder: specifications | 20-bit Incremental system |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational Max. speed (r/min) | 6000 |
| Momentary Max. peak torque (N â‹… m) | 0.95 |
| Regenerative brake frequency (times/min) | Without option :No limitWith option :No limitOption (External regenerative resistor) Part No. : DV0P4281 |
| Moment of inertia of rotor ( x10-4kg ⋅ m²) | 0.051 |
| Recommended moment of inertia ratio of the load and the rotor | 30 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
