MSHS404010

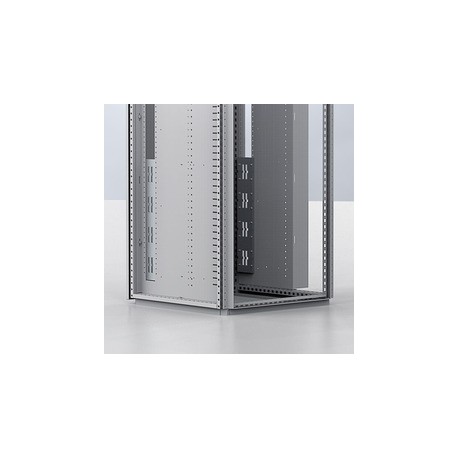

MSHS404010 ELDON Busbar support 2x(40x10) MSHS404010
$0.00USD
3920 in stock
Key Specifications
Feature Name:Feature Value
Benefit: (Features):A flexible and reliable solution that ensures procurement, design and installation can be done efficiently reducing the labour time required.
Comment: (Features):Internal side panels (MSPS) are required in order to mount the busbar supports.
Feature: (Features):Horizontal main busbar support for 2 bars up to 120 x 10 mm, which can be mounted at the required height behind any system (fix, modular or plug-in).
Supplier Information
ELDON
Products: 4827
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Benefit: (Features) | A flexible and reliable solution that ensures procurement, design and installation can be done efficiently reducing the labour time required. |
| Comment: (Features) | Internal side panels (MSPS) are required in order to mount the busbar supports. |
| Feature: (Features) | Horizontal main busbar support for 2 bars up to 120 x 10 mm, which can be mounted at the required height behind any system (fix, modular or plug-in). |
| Accessory (EF013236) | |
| Advantage: (Features) | The standard supports are available off the shelf and have been tested according to IEC 61439. The supports are suitable for the most common bars on the market. Main busbars can be installed in the middle of the enclosure height, which will reduce the required busbar section. |
| Spare part (EF013237) | |
| Delivery: (Technical data) | Busbar support for 3 phases and neutral, and mounting material. |
| Material: (Technical data) | Polycarbonate reinforced with 10% of glass material. |
| Description: (Technical data) | Busbar supports up to 3600A to be mounted horizontally behind the compartments. Mounts to the internal side panels MSPS, and in the height position which we need. Supports for single or double bar per phase for bar thickness 10 mm, and width from 10 to 120 mm. Distance between bars of 20 mm. |
| Type of accessory/spare part (EF000215) |
Product Description
Sop. bars the main. 2x(40x10), up to 3600A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Description:
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
