In Stock Hot Product
MSE/00-0K

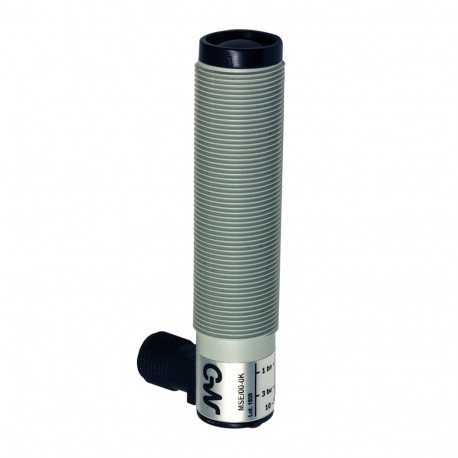

MSE/00-0K MICRO DETECTORS Photoelectric sensor Emitter plastic M12 plug M12 90°
$0.00USD
4118 in stock
Key Specifications
Weight:30g
Emission:Infrared (880 nm)
Dimensions:M18 x 1 /L =78,6 mm
Connections:Connector M12 4-pin 90°
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 30g |
| Emission | Infrared (880 nm) |
| Dimensions | M18 x 1 /L =78,6 mm |
| Connections | Connector M12 4-pin 90° |
| Nominal range | 16m (MSR), 32m (MSD) |
| Position lens | Axial |
| Repeatability | 5% |
| Thermal drift | ≤10% Sr |
| body material | PBT |
| Certifications | CE cURus |
| LED indicators | Yellow (power) |
| Supply voltage | 10-30Vdc |
| Tightening torque | 1Nm |
| Shock and vibration | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Accessories included | Nut M18 x 1 |
| Degree of protection | IP67 |
| Transmitter/Receiver | Issuer |
| Operating temperature | 25°C..+ 70° C (without condensation) |
| Principle of operation | Barrier |
| Sensitivity adjustment | Not |
| Maximum residual ripple | 10% |
| Protection short circuit | Short circuit (auto reset), overvoltage |
| Delay to the availability | ≤200ms |
| Immunity to ambient light | 3000lux (incandescent lamp), 10000lux (sunlight) |
| Electromagnetic compatibility | According to en 60947-5-2 |
| Material of the active surface | PMMA |
| Absorption of current in the vacuum | ≤15mA |
| Protection against impulse overvoltage | Protection impulses surge |
Product Description
MSE/00-0K Photoelectric sensor Emitt. plast. M12conn. M12 a 90°
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
