MSB 2,5-F

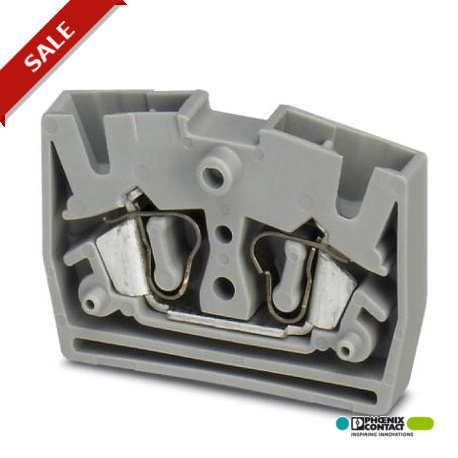

MSB 2,5-F 3244041 PHOENIX CONTACT Mini feed-through terminal block, Connection method: Spring-cage connectio..
$0.97USD
10349 in stock
Key Specifications
:2.5 mm² / 0.7 kg
Color:gray
Width:5.2 mm
Height:22 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 2.5 mm² / 0.7 kg | |
| Color | gray |
| Width | 5.2 mm |
| Height | 22 mm |
| Length | 32 mm |
| ASD level | 1.857 (m/s2)2/Hz |
| Shock form | Half-sine |
| Acceleration | 0.8g |
| Test spectrum | Service life test category 1, class B, body mounted |
| Shock duration | 30 ms |
| Test frequency | f1= 5 Hz to f2= 150 Hz |
| End cover width | 4 mm |
| Open side panel | JA |
| Test directions | X-, Y- and Z-axis |
| Number of levels | 1 |
| Pollution degree | 3 |
| Stripping length | 8 mm |
| Connection method | Spring-cage connection |
| Finger protection | guaranteed |
| Shock test result | Test passed |
| Bending test turns | 135 |
| Nominal current IN | 24 A |
| Nominal voltage UN | 800 V |
| Short-time current | 0.3 kA |
| Insulating material | PA |
| Rated surge voltage | 8 kV |
| Tensile test result | Test passed |
| Maximum load current | 30 A (with 4 mm² conductor cross section) |
| Overvoltage category | III |
| Result of aging test | Test passed |
| Nominal cross section | 2.5 mm² |
| Number of connections | 2 |
| Result of bending test | Test passed |
| Result of thermal test | Test passed |
| Test duration per axis | 5 h |
| Tractive force setpoint | 5 N |
| Insulating material group | I |
| Internal cylindrical gage | A3 |
| Requirements, voltage drop | ≤ 3.2 mV |
| Back of the hand protection | guaranteed |
| Bending test rotation speed | 10 rpm |
| Result of voltage-drop test | Test passed |
| Surge voltage test setpoint | 9.8 kV |
| Result of surge voltage test | Test passed |
| Number of shocks per direction | 3 |
| Short circuit stability result | Test passed |
| Test specification, shock test | DIN EN 50155 (VDE 0115-200):2008-03 |
| Result of temperature-rise test | Test passed |
| Conductor cross section AWG max. | 12 |
| Conductor cross section AWG min. | 28 |
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section solid max. | 4 mm² |
| Conductor cross section solid min. | 0.08 mm² |
| Shock protection test specification | DIN EN 50274 (VDE 0660-514):2002-11 |
| Conductor cross section tensile test | 0.08 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.08 mm² |
| Flammability rating according to UL 94 | V0 |
| Oscillation, broadband noise test result | Test passed |
| Max. AWG conductor cross section, flexible | 14 |
| Min. AWG conductor cross section, flexible | 28 |
| Power frequency withstand voltage setpoint | 2 kV |
| Bending test conductor cross section/weight | 0.08 mm² / 0.1 kg |
| Conductor cross section short circuit testing | 2.5 mm² |
| Static insulating material application in cold | -60 °C |
| Result of power-frequency withstand voltage test | Test passed |
| Test specification, oscillation, broadband noise | DIN EN 50155 (VDE 0115-200):2008-03 |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Proof of thermal characteristics (needle flame) effective duration | 30 s |
| Ageing test for screwless modular terminal block temperature cycles | 192 |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 2.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.14 mm² |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 2.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.14 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 0.5 mm² |
| Result of the test for mechanical stability of terminal points (5 x conductor connection) | Test passed |
Product Description
Mini-terminal block, nominal voltage: 800 V, nominal current: 24 A, number of connections: 2, connection type: Spring connection, 1st floor, Dimensioning cross-section: 2.5 mm², cross-section: 0.08 mm
