MS496-75

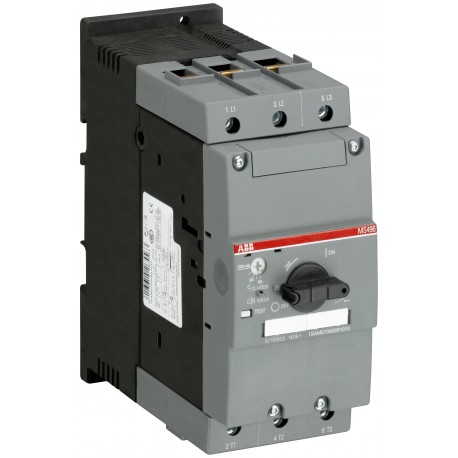

MS496-75 1SAM570000R1008 ABB MS496-75 Manual Motor Starter
$0.00USD
4361 in stock
Key Specifications
:(400 V AC) 50 kA
ETIM 4:EC000074 - Motor protective circuit-breaker
ETIM 5:EC000074 - Motor protective circuit-breaker
ETIM 6:EC000074 - Motor protection circuit-breaker
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| (400 V AC) 50 kA | |
| ETIM 4 | EC000074 - Motor protective circuit-breaker |
| ETIM 5 | EC000074 - Motor protective circuit-breaker |
| ETIM 6 | EC000074 - Motor protection circuit-breaker |
| ETIM 7 | EC000074 - Motor protection circuit-breaker |
| ETIM 8 | EC000074 - Motor protection circuit-breaker |
| UNSPSC | 39121521 |
| eClass | V11.0 : 27370401 |
| Standards | CSA 22.2 No. 14 |
| Power Loss | at Rated Operating Conditions per Pole 3.3 ... 5.6 W |
| RoHS Status | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| Actuator Type | Rotary Handle |
| Setting Range | 57 ... 75 A |
| Terminal Type | Screw Terminals |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| BV Certificate | 1SAA937000-0201 |
| GL Certificate | 1SAA937000-0403 |
| LR Certificate | 1SAA937000-0504 |
| UL Certificate | UL_E167205 |
| WEEE B2C / B2B | Business To Business |
| CQC Certificate | CQC2013010307604042 |
| DNV Certificate | 1SAA937000-0302 |
| EAC Certificate | 1SAA937001-2703 |
| Number of Poles | 3 |
| cUL Certificate | cUL_E195536 |
| Pollution Degree | 3 |
| RMRS Certificate | 1SAA918000-0704 |
| RoHS Information | 1SAA918002-4401 |
| Mounting Position | 1 ... 6 |
| Product Net Width | 70 mm |
| Tightening Torque | Main Circuit 4 ... 6 N·m |
| E-Number (Finland) | 3707043 |
| Product Net Height | 165 mm |
| Product Net Weight | 2.268 kg |
| Package Level 1 EAN | 4013614265549 |
| Rated Frequency (f) | Main Circuit 50 Hz |
| Degree of Protection | Housing IP20 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Customs Tariff Number | 85362090 |
| Electrical Durability | 25000 cycle |
| Mechanical Durability | 50000 cycle |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 76.5 mm |
| Wire Stripping Length | Main Circuit 17 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 171 mm |
| Ambient Air Temperature | Operation -20 ... +70 °C |
| Horsepower Rating UL/CSA | (200 V AC) Three Phase 25 Hp |
| Instructions and Manuals | 1SAM507001R1001 |
| Recommended Screw Driver | Hexagon 4 |
| Tightening Torque UL/CSA | Main Circuit 35 ... 53 in·lb |
| General Use Rating UL/CSA | (600 V AC) 75 A |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Object Classification Code | F |
| Product Net Depth / Length | 174 mm |
| Contact Position Indication | ON / OFF / TRIP |
| Package Level 1 Gross Weight | 2.3 kg |
| Rated Insulation Voltage (Ui) | 690 V |
| Declaration of Conformity - CE | 1SAD938502-0050 |
| Package Level 1 Depth / Length | 190 mm |
| Rated Operational Current (Ie) | 75 A |
| Declaration of Conformity - CCC | 2022960307001586 |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x 2.5 ... 50 mm² |
| Declaration of Conformity - UKCA | 1SAD938500-1051 |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Data Sheet, Technical Information | 1SBC100173C0201 |
| Rated Operational Power AC-3 (Pe) | (400 V) Three Phase 37 kW |
| Time-Current Characteristic Curve | 1SAM500502F0008 |
| IDEA Granular Category Code (IGCC) | 4845 >> 3 Pole Motor Circuit Protector Circuit Breakers |
| Rated Operational Current AC-3 (Ie) | 75 A |
| Toxic Substances Control Act - TSCA | 2CMT2023-006539 |
| Ambient Air Temperature Compensation | Yes |
| Maximum Operating Altitude Permissible | 2000 m |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1x 10-2/0 AWG |
| Data Sheet, Technical Information (Part 3) | 9AKK105713A1103 |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Conventional Free-air Thermal Current (Ith) | Main Circuit 75 A |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 100 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 100 kA |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 975 A |
Product Description
MS496-75 Manual Motor Starter 57 ... 75 A
