MPT 4 BU

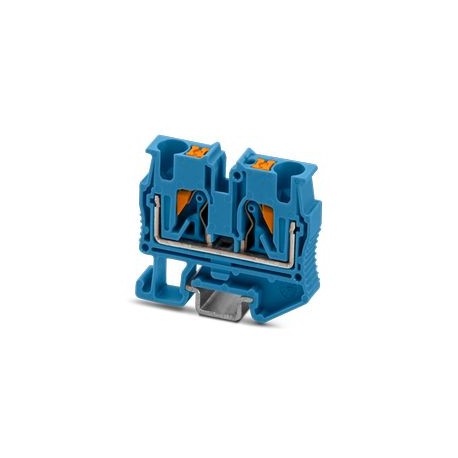

MPT 4 BU 3249001 PHOENIX CONTACT Mini feed-through terminal, nominal voltage: 500 V, nominal current: 32 A, ..
$1.20USD
8379 in stock
Key Specifications
:The max. load current must not be exceeded by the total current of all connected conductors.
Note:When establishing a connection on the open housing side of a feed-through modular terminal block of the same series and size, the block must be provided with a cover if the expected insulation voltage is >320 V.
Color:blue
Depth:32.1 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| The max. load current must not be exceeded by the total current of all connected conductors. | |
| Note | When establishing a connection on the open housing side of a feed-through modular terminal block of the same series and size, the block must be provided with a cover if the expected insulation voltage is >320 V. |
| Color | blue |
| Depth | 32.1 mm |
| Width | 6.2 mm |
| Height | 38 mm |
| Spectrum | Service life test category 2, bogie-mounted |
| ASD level | 6.12 (m/s²)²/Hz |
| Frequency | f1= 5 Hz to f2= 250 Hz |
| Potentials | 1 |
| Pulse shape | Half-sine |
| Acceleration | 3.12g |
| Product type | Miniature terminal block |
| Mounting type | NS 15 |
| Specification | DIN EN 50155 (VDE 0115-200):2018-05 |
| Number of rows | 1 |
| Shock duration | 18 ms |
| Depth on NS 15 | 32.8 mm |
| End cover width | 2.2 mm |
| Nominal current | 32 A |
| Nominal voltage | 500 V |
| Open side panel | Yes |
| Test directions | X-, Y- and Z-axis |
| Stripping length | 10 mm ... 12 mm |
| Time of exposure | 30 s |
| Cross section AWG | (converted acc. to IEC) |
| Area of application | Railway industry |
| Degree of pollution | 3 |
| Insulating material | PA |
| Number of positions | 1 |
| Rated surge voltage | 6 kV |
| Maximum load current | 36 A (bei 6 mm² Leiterquerschnitt starr) |
| Overvoltage category | III |
| Nominal cross section | 4 mm² |
| Test duration per axis | 5 h |
| Insulating material group | I |
| Internal cylindrical gage | A4 |
| Conductor cross section rigid | 0.2 mm² ... 6 mm² |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Number of shocks per direction | 3 |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Conductor cross section flexible | 0.2 mm² ... 6 mm² |
| Connection in acc. with standard | IEC 60947-7-1 |
| Flammability rating according to UL 94 | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Conductor cross section, flexible [AWG] | 24 ... 10 (converted acc. to IEC) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Static insulating material application in cold | -60 °C |
| Maximum power dissipation for nominal condition | 1.02 W |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 4 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 4 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1 mm² |
Product Description
Mini feed-through terminal block, nom. voltage: 500 V, nominal current: 32 A, number of positions: 1, connection method: Push-in connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2,
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
