In Stock Hot Product
MPC083R5

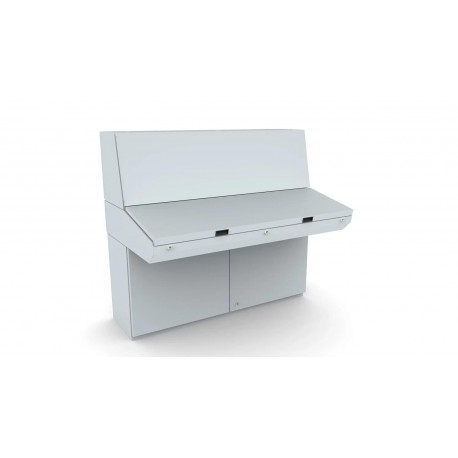

MPC083R5 ELDON Base console, 700x800x500
$0.00USD
4602 in stock
Key Specifications
EAN:8713574128156
UPC:783510510428
Color:Light Gray
Depth:500 mm
Supplier Information
ELDON
Products: 4827
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 8713574128156 |
| UPC | 783510510428 |
| Color | Light Gray |
| Depth | 500 mm |
| Width | 800 mm |
| Finish | Powder Coated |
| Height | 700 mm |
| Weight | 49.3 kg |
| Material | Mild Steel |
| Thickness | 1.5 mm |
| Color Code | RAL 7035 |
| Panel Size | 699 x 590 mm |
| Feature Name | Feature Value |
| Depth (EF000049) | 500.00 mm |
| Packing Quantity | 1.0000 |
| Width (EF000008) | 800.00 mm |
| Colour (EF000007) | Grey |
| Height (EF000040) | 700.00 mm |
| Max Mounting Depth | 470.5 mm |
| Material (EF002169) | Steel |
| Mounting Plate Width | 699 mm |
| Atributo del producto | Valor |
| Mounting Plate Height | 590 mm |
| RAL-number (EF000116) | 7.04 |
| Mounting Plate Included | Yes |
| Number of doors (EF000122) | 1.00 |
| Standard Packaging Quantity | 1.0000 |
| Surface finishing (EF006569) | Powder coating |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 12 |
| Component of the desk system (EF006789) | Base unit |
Product Description
Console base, 700x800x500, combinable, with MP, sheet steel, IP66
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
