MP0/00-0E

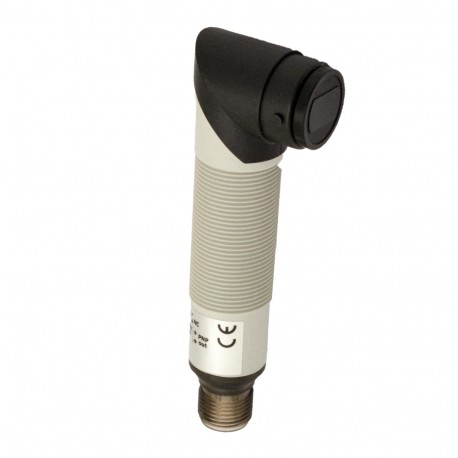

MP0/00-0E MICRO DETECTORS Photoelectric sensor BGS 50 mm plastic plug M12
$0.00USD
4487 in stock
Key Specifications
Weight:30g
Emission:Infrared (880 nm)
Approvals:CE cURus
Dimensions:M18 x 1 /L =88,8 x 29,7mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 30g |
| Emission | Infrared (880 nm) |
| Approvals | CE cURus |
| Dimensions | M18 x 1 /L =88,8 x 29,7mm |
| Connections | M12 4pin Plug |
| Output type | DECOUT (NPN, PNP) |
| Load current | ≤100mA |
| LED indicators | Yellow (output state) |
| Optic position | Right angle 90° |
| Leakage current | ≤10μA |
| Output Function | NO, NC |
| Repeat Accuracy | 5% |
| Housing Material | PBT |
| EMC compatibility | EN 60947-5-2 |
| Operating Voltage | 10-30Vdc |
| Tightening torque | 1Nm |
| Function Principle | Background suppression |
| Max ripple content | 10% |
| Output voltage drop | 1,2V max. IL =100 mA |
| Switching frequency | 1Khzz |
| Thermal drift of Sr | ≤10% Sr |
| Active Head Material | PMMA |
| Degree of protection | IP67 |
| Supplied Accessories | nuts M18 x 1 |
| Operating temperature | 25°C..+ 70° C (Without freeze) |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| No-Load supply current | ≤40mA |
| Sensitivity adjustment | No |
| Nominal sensing distance | 50mm white target 90% Kodak 100x100mm |
| Short-circuit protection | Short circuit (autoreset), Overvoltage |
| Interference to external light | 3000lux (incandescent lamp), 10000lux (sunlight) |
| Time delay before availability | ≤200ms |
| Impulsive Overvoltage Protection | Impulsive Overvoltage Protection |
Product Description
MP0/00-0E Photoelectric sensor BGS 50 mm plast. conn. M12
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
