MP 12X1,5-F YE

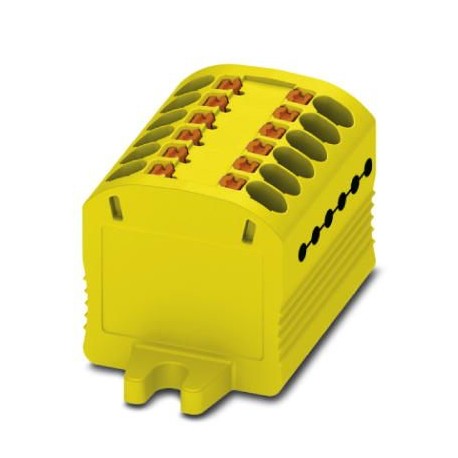

MP 12X1,5-F YE 3248346 PHOENIX CONTACT Microborne step, bridged internally, with threaded flange, connection..
$0.00USD
4234 in stock
Key Specifications
EAN:Four trillion fifty five billion six hundred twenty six million two hundred fifty three thousand twenty two
Key order:Three million two hundred forty eight thousand three hundred forty six
Key selling:BE2265 -
Packing unit:20 pcs
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | Four trillion fifty five billion six hundred twenty six million two hundred fifty three thousand twenty two |
| Key order | Three million two hundred forty eight thousand three hundred forty six |
| Key selling | BE2265 - |
| Packing unit | 20 pcs |
| Width (Overview) | 42,9 mm |
| Country of origin | PL (Poland) |
| Height (Overview) | 17.8 mm |
| Length (Overview) | 20 mm |
| (Data commercial) | 1.5 mmTwo/0.4 kg |
| Tariff number tariff | Eighty five million three hundred sixty nine thousand ten |
| Minimum order quantity | 20 pcs |
| Color (Data commercial) | yellow |
| Gauge male (Dimensions) | A1 / B1 |
| Diameter hole (Overview) | 3.2 mm |
| Isolation (Data commercial) | PA |
| Level ASD (Data commercial) | 6,12 (m/sTwo)Two/Hz |
| Potential (Data commercial) | One |
| Acceleration (Data commercial) | 30g |
| Address test (Data commercial) | Axes X, y and Z (pos. and neg.) |
| Length of peeling (Dimensions) | 8 mm ... 10 mm |
| (Standards and specifications) | No dangerous substances above the thresholds |
| Nominal value (Data commercial) | 1 N |
| Spectrum test (Data commercial) | Durability test category 2, bogie |
| Type of connection (Dimensions) | Connection push-in |
| Type of shock (Data commercial) | Semisinusoide |
| Category surge (Data commercial) | III |
| Side wall open (Data commercial) | Not |
| Distance between holes (Overview) | 36.6 mm |
| Unit weight (excluding packaging) | 99,990 g |
| Number of floors (Data commercial) | One |
| Pollution degree (Data commercial) | Three |
| Rated voltage UN (Data commercial) | 500 V |
| Result crash test (Data commercial) | Test approved |
| Result test aging (Data commercial) | Test approved |
| Nominal current IN (Data commercial) | 17,5 To |
| Frequency of testing (Data commercial) | fOne= 5 Hz to fTwo= 250 Hz |
| Maximum load current (Data commercial) | 17,5 To |
| Bend test revolutions (Data commercial) | One hundred thirty five |
| Duration of the shock (Data commercial) | 18 ms |
| Nominal cross section (Data commercial) | 1.5 mm2 |
| Number of connections (Data commercial) | Twelve |
| Result. test traction (Data commercial) | Test approved |
| Result of thermal test (Data commercial) | Test approved |
| China RoHS (Standards and specifications) | Space of time for the intended use: unlimited = FEUP-e |
| Bend test rotation speed (Data commercial) | 10 r.p.m. |
| Core cross-section rigid min. (Dimensions) | 0.14 mm2 |
| Requirement voltage Drop (Data commercial) | ≤ 3,2 mV |
| Section of conductor AWG max. (Dimensions) | Sixteen |
| Section of conductor AWG min. (Dimensions) | Twenty six |
| Transient voltage design (Data commercial) | 6 kV |
| Current of short duration (Data commercial) | 0,18 kA |
| Duration of test per axis (Data commercial) | 5 h |
| Group insulating material (Data commercial) | I |
| Room temperature (service) (Data commercial) | -60 °C ... 130 °C |
| Section of conductor rigid max. (Dimensions) | 1.5 mm2 |
| Connection according to standard (Dimensions) | IEC 60947-7-1/IEC 60947-7-2 |
| Results test of flexibility (Data commercial) | Test approved |
| Oxygen index (en ISO 4589-2) (Data commercial) | >32 % |
| Output test voltage transient (Data commercial) | Test approved |
| Result. test corr. short-dur. (Data commercial) | Test approved |
| Section of flexible conductor max. (Dimensions) | 1.5 mm2 |
| NF F16-101, NF F10-102 class F (Data commercial) | Two |
| NF F16-101, NF F10-102 class I (Data commercial) | Two |
| Number of shocks per direction (Data commercial) | Three |
| Section of flexible conductor, min. (Dimensions) | 0.14 mm2 |
| Tensile strength nominal Value (Data commercial) | 40 N |
| Result test ac voltage bearable (Data commercial) | Test approved |
| Connection according to standard (Data connection) | IEC 60947-7-1/IEC 60947-7-2 |
| Nominal value ac voltage bearable (Data commercial) | 1,89 kV |
| Specification of test, crash test (Data commercial) | DIN EN 50155 (VDE 0115-200):2008-03 |
| Protection of the back of the hand (Data commercial) | Guaranteed |
| Pull-test section of the conductor (Data commercial) | 1.5 mm2 |
| Seat fixed on the mounting surface (Data commercial) | NS 15 |
| The result of the check of heating (Data commercial) | Test approved |
| Nominal value test voltage transient (Data commercial) | 7,3 kV |
| Bend test section of conductor/weight (Data commercial) | 0.14 mmTwo/0,2 kg |
| Section of the flexible conductor AWG max. (Dimensions) | Sixteen |
| Section of the flexible conductor AWG min. (Dimensions) | Twenty six |
| Use static insulating material in cold (Data commercial) | -60 °C |
| Safety against contact with the fingers (Data commercial) | Guaranteed |
| Class of flammability according to UL 94 (Data commercial) | V0 |
| Class of flammability according to UL 94 (Data connection) | V0 |
| Power dissipated max with condition rated (Data commercial) | 0,56 W |
| Test outcome oscillation, broadband noise (Data commercial) | Test approved |
| Result of the verification of voltage drop (Data commercial) | Test approved |
| A result of the seat fixed in the fixing bracket (Data commercial) | Test approved |
| Current test short-term section of the conductor (Data commercial) | 1.5 mm2 |
| Specification of test protection against contact (Data commercial) | DIN EN 50274 (VDE 0660-514):2002-11 |
| Heat emission calorímetra NFPA 130 (ASTM E 1354) (Data commercial) | 28 MJ/kg |
| Reaction to fire for vehicles on rails (DIN 5510-2) (Data commercial) | Test approved |
| Specification of test, oscillation, broadband noise (Data commercial) | DIN EN 50155 (VDE 0115-200):2008-03 |
| Toxicity of the combustion gases NFPA 130 (SMP 800C) (Data commercial) | approved |
| Flammability of the surfaces to NFPA 130 (ASTM E 162) (Data commercial) | approved |
| Test procedure with a flame test (DIN en 60695-11-10) (Data commercial) | V0 |
| Fire protection for vehicles on rails (DIN en 45545-2) R22 (Data commercial) | HL 1 - HL 3 |
| Fire protection for vehicles on rails (DIN en 45545-2) R22 (Data connection) | HL 1 - HL 3 |
| Fire protection for vehicles on rails (DIN en 45545-2) R23 (Data commercial) | HL 1 - HL 3 |
| Fire protection for vehicles on rails (DIN en 45545-2) R23 (Data connection) | HL 1 - HL 3 |
| Fire protection for vehicles on rails (DIN en 45545-2) R24 (Data commercial) | HL 1 - HL 3 |
| Fire protection for vehicles on rails (DIN en 45545-2) R24 (Data connection) | HL 1 - HL 3 |
| Fire protection for vehicles on rails (DIN en 45545-2) R26 (Data commercial) | HL 1 - HL 3 |
| Fire protection for vehicles on rails (DIN en 45545-2) R26 (Data connection) | HL 1 - HL 3 |
| Section of flexible conductor with toe, with plastic sleeve max. (Dimensions) | 1.5 mm2 |
| Section of flexible conductor with toe, with plastic sleeve min. (Dimensions) | 0.25 mm2 |
| Checking of thermal characteristics (called needle) time of action (Data commercial) | 30 s |
| Section of flexible conductor with toe cap, without plastic sleeve max. (Dimensions) | 1.5 mm2 |
| Section of flexible conductor with toe cap, without plastic sleeve min. (Dimensions) | 0.25 mm2 |
| Essay of aging for terminal rail, without screws temperature cycles (Data commercial) | One hundred ninety two |
| Density of the combustion gases specific optical NFPA 130 (ASTM E 662) (Data commercial) | approved |
| Temperature rating of the insulating material relative (Elec., UL 746 B) (Data commercial) | 130 °C |
| Temperature rating of the insulating material (DIN en 60216-1 (VDE 0304-21)) (Data commercial) | 130 °C |
| Result of the verification of the mechanical resistance points of embornaje (connection of conductors quintuple) (Data commercial) | Test approved |
