MNT-1 S/WH

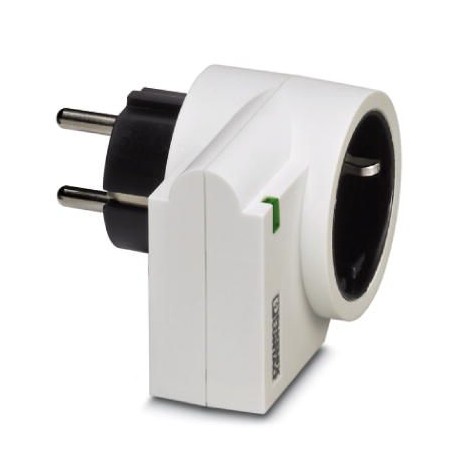

MNT-1 S/WH 2880862 PHOENIX CONTACT Type 3 surge protection device
$0.00USD
4405 in stock
Key Specifications
GTIN:4046356013093
Note:Made to Order (non-returnable)
Orderkey:2880862
(General):≤ 1 kV (at 1 kA (8/20 μs))
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356013093 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2880862 |
| (General) | ≤ 1 kV (at 1 kA (8/20 μs)) |
| Catalog page | Page 60 (C-6-2013) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| EN type (General) | T3 |
| Custom tariff number | 85363030 |
| (Ambient conditions) | EN 61643-11 |
| Type (Ambient conditions) | Attachment plug |
| Color (Ambient conditions) | white |
| Depth (Key Commercial Data) | 75.5 mm |
| Width (Key Commercial Data) | 63 mm |
| Height (Key Commercial Data) | 79 mm |
| Nominal current IN (General) | 16 A (30 °C) |
| Nominal voltage UN (General) | 230 V AC |
| Combination wave UOC (General) | 4 kV |
| Nominal frequency fN (General) | 50 Hz |
| Residual current IPE (General) | ≤ 1 µA |
| Response time tA(L-N) (General) | ≤ 25 ns (L-N) |
| Response time tA(L-PE) (General) | ≤ 100 ns (L, N-PE) |
| Degree of protection (Dimensions) | IP20 (child-proof) |
| Mounting type (Ambient conditions) | Plugging into the mains socket |
| Max. required back-up fuse (General) | 16 A (gL/C) |
| Weight per Piece (excluding packing) | 68.970 g |
| Housing material (Ambient conditions) | PA |
| Energy absorption symmetrical (General) | 140 J (L-N (L)) |
| Arrester rated voltage UC(L-N) (General) | 275 V AC |
| Direction of action (Ambient conditions) | L(N)-PE |
| Enery absorption, asymmetrical (General) | 220 J (L(N)-PE) |
| Surge protection fault message (General) | optical |
| Arrester rated voltage UC(L-PE) (General) | 360 V AC |
| Arrester rated voltage UC(N-PE) (General) | 360 V AC |
| Connection method IN (Protective circuit) | Grounding plug |
| Connection method OUT (Protective circuit) | Grounding socket |
| Voltage protection level Up(L-N) (General) | ≤ 1.2 kV |
| Voltage protection level Up(L-PE) (General) | ≤ 1.5 kV |
| Voltage protection level Up(N-PE) (General) | ≤ 1.5 kV |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 75 °C |
| Max. discharge current Imax(8/20) µs (General) | 8 kA (> 100x 1 kA) |
| For country-specific use in (Ambient conditions) | S, FIN, N |
| Nominal discharge current In(8/20) µs (General) | 3 kA |
| (Non-heating apparatus connection, power supply) | IEC 60884-1 |
| Nominal discharge current In(8/20) µs (L-N) (General) | 3 kA |
| Nominal discharge current In(8/20) µs (L-PE) (General) | 3 kA |
| Nominal discharge current In(8/20) µs (N-PE) (General) | 3 kA |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
| Standards for cearances and creepage distances (Ambient conditions) | EN 60664-1 |
| Standards/specifications (Non-heating apparatus connection, power supply) | EN 61643-11/A11 2007 |
| Short-circuit withstand capability IPwith max. backup fuse (r.m.s.) (General) | 3 kA |
