In Stock Hot Product
MN 9

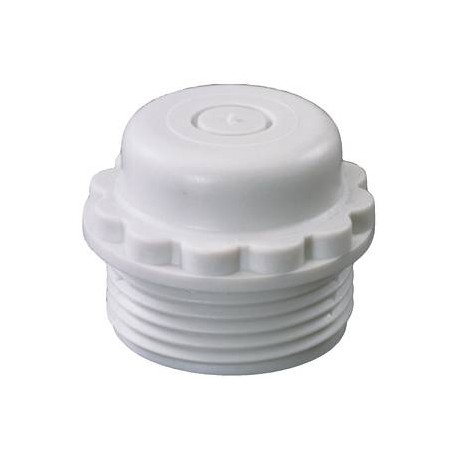

MN 9 10060748 WISKA Polyethylene Light Grey Rosette Cap, IP54 Thread Pg.09
$0.00USD
3978 in stock
Key Specifications
Type (Features):MN 9
Material (Features):Polyethylene
Thread type (Features):PG
Packing unit (Features):100
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type (Features) | MN 9 |
| Material (Features) | Polyethylene |
| Thread type (Features) | PG |
| Packing unit (Features) | 100 |
| Product Color (Features) | RAL 7035 |
| Temp. range max (Features) | 80 °C |
| Temp. range min (Features) | -20 °C |
| Total length TL (Features) | 16 mm |
| Protection class (Features) | IP54 |
| Order no. RAL 7035 (Features) | 10060748 |
| ETIM-Classification (Features) | EC000451 |
| External diameter ED (Features) | 18 mm |
| Ø cable diameter max (Features) | 8 mm |
| Ø cable diameter min (Features) | 6 mm |
| Ø Connection thread D (Features) | 9 |
| Length screw-in thread L (Features) | 9 mm |
Product Description
Twisting sleeve, plastic, RAL 7035, Pg9
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
