MKKDS 3/ 4 TS

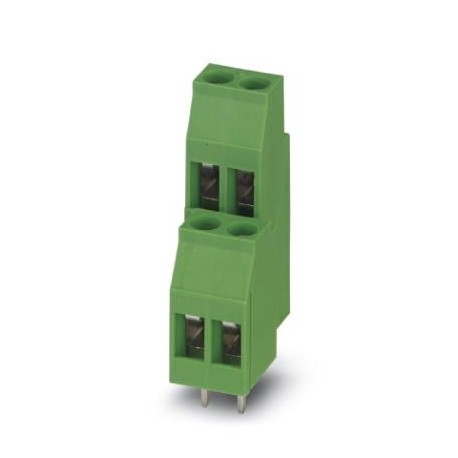

MKKDS 3/ 4 TS 1714675 PHOENIX CONTACT PCB terminal block
$0.00USD
3595 in stock
Key Specifications
GTIN:4055626370934
Orderkey:1714675
Packing unit:1
Custom tariff number:85369010
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626370934 |
| Orderkey | 1714675 |
| Packing unit | 1 |
| Custom tariff number | 85369010 |
| Screw thread (Dimensions) | M3 |
| Pitch (Key Commercial Data) | 5 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 32 mm |
| Range of articles (Dimensions) | MKKDS 3 |
| Nominal current IN (Dimensions) | 22 A |
| Solder pin surface (Dimensions) | |
| Number of positions (Dimensions) | 4 |
| Nominal cross section (Dimensions) | 2.5 mm² |
| Rated voltage (III/2) (Dimensions) | 400 V |
| Hole diameter (Key Commercial Data) | 32 mm |
| Solder pin [P] (Key Commercial Data) | 5 mm |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Insulating material group (Dimensions) | I |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Dimensions) | V0 |
Product Description
Terminal block for printed circuit board, rated current: 22 A, rated voltage (III/2): 400 V, rated cross-section: 2.5 mm², number of rows: 2, number of poles per row: 4, article family: MKKDS 3, pitch
