MKDSP 50/ 3-17,5 HEX5

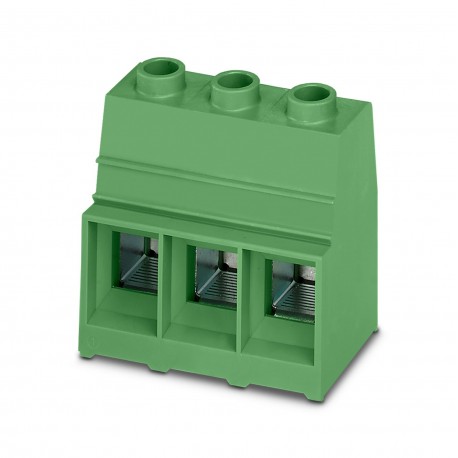

MKDSP 50/ 3-17,5 HEX5 1864969 PHOENIX CONTACT PCB terminal block, nominal current: 192 A, nom. voltage: 1000..
$0.00USD
3070 in stock
Key Specifications
:1.5 mm² / flexible / > 40 N
Note:WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Type:Standard
Pitch:17.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 1.5 mm² / flexible / > 40 N | |
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Type | Standard |
| Pitch | 17.5 mm |
| Result | Test passed |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Frequency | 10 - 150 - 10 Hz |
| Width [w] | 55 mm |
| Height [h] | 59 mm |
| Length [l] | 32 mm |
| Pin layout | Linear pinning |
| Sweep speed | 1 octave/min |
| Temperature | 850 °C |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Product line | COMBICON Terminals XXL |
| Product type | Printed circuit board terminal |
| Hole diameter | 2.4 mm |
| Mounting type | Wave soldering |
| Specification | DIN VDE 0276-603 (VDE 0276-603):2010-03 |
| Number of rows | 1 |
| Pin dimensions | 1.4 x 1.4 mm |
| Product family | MKDSP 50 |
| Color (Housing) | green (6021) |
| Test directions | X-, Y- and Z-axis |
| Article revision | 00 |
| Contact material | Cu alloy |
| Installed height | 55 mm |
| Stripping length | 20 mm |
| Time of exposure | 5 s |
| Connection method | Screw connection with tension sleeve |
| Tightening torque | 5.5 Nm |
| Type of packaging | packed in cardboard |
| Nominal current IN | 192 A |
| Nominal voltage UN | 1000 V |
| Dimensional drawing | |
| Insulating material | PA |
| Number of positions | 3 |
| Number of potentials | 3 |
| Rated voltage (II/2) | 1000 V |
| Drive form screw head | Allen key (HEX5) |
| Nominal cross section | 70 mm² |
| Number of connections | 3 |
| Rated voltage (III/2) | 1000 V |
| Rated voltage (III/3) | 1000 V |
| Solder pin length [P] | 4 mm |
| Test duration per axis | 2.5 h |
| Surface characteristics | Tin-plated |
| Insulating material group | I |
| Solder pins per potential | 4 |
| CTI according to IEC 60112 | 600 |
| Rated surge voltage (II/2) | 6 kV |
| Conductor cross section AWG | 16 ... 2/0 |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (III/3) | 8 kV |
| Conductor cross section rigid | 1.5 mm² ... 70 mm² |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Note on conductor pretreatment | The following measures are required for durable and reliable contacting of the aluminum conductor: the stripped end of the aluminum conductor must be separated from the oxide layer using a blade, and immediately dipped in non-acid and non-alkali Vaseline. The pretreatment must be repeated when connecting the conductors anew. |
| Ambient temperature (operation) | -40 °C ... 100 °C (Depending on the current carrying capacity/derating curve) |
| Rated insulation voltage (II/2) | 1000 V |
| Conductor cross section flexible | 1.5 mm² ... 70 mm² |
| Rated insulation voltage (III/2) | 1000 V |
| Rated insulation voltage (III/3) | 1000 V |
| minimum creepage distance (II/2) | 5.5 mm |
| Requirement temperature-rise test | The sum of ambient temperature and temperature rise of the PCB terminal block shall not exceed the upper limiting temperature. |
| minimum creepage distance (III/2) | 8 mm |
| minimum creepage distance (III/3) | 12.5 mm |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Comparative tracking index (IEC 60112) | CTI 600 |
| Metal surface soldering area (top layer) | Tin (4 - 8 µm Sn) |
| Metal surface terminal point (top layer) | Tin (4 - 8 µm Sn) |
| Cross section / torque / form of conductor | Cable cross section:50 mm²; Torque:5.5 Nm; Form of cable:sector-shaped, single-strand, class 1, α = 90°(se) |
| 2 conductors with same cross section, solid | 1.5 mm² ... 16 mm² |
| Insulation resistance, neighboring positions | > 5 MΩ |
| 2 conductors with same cross section, flexible | 1.5 mm² ... 25 mm² |
| Single-conductor/terminal point multi-stranded | 1.5 mm² ... 70 mm² |
| 2 conductors with the same cross section, stranded | 1.5 mm² ... 25 mm² |
| minimum clearance value - non-homogenous field (II/2) | 5.5 mm |
| minimum clearance value - non-homogenous field (III/2) | 8 mm |
| minimum clearance value - non-homogenous field (III/3) | 8 mm |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 1.5 mm² ... 50 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve | 1.5 mm² ... 50 mm² |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 1.5 mm² / solid / > 40 N |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 1.5 mm² ... 16 mm² |
Product Description
Terminal block for printed circuit board, nominal current: 192 A, nominal voltage (III/2): 1000 V, nominal cross-section: 70 mm², number of potentials: 3, number of rows: 1, number of poles per row: 3
