MKDSP 25/ 5-15,00

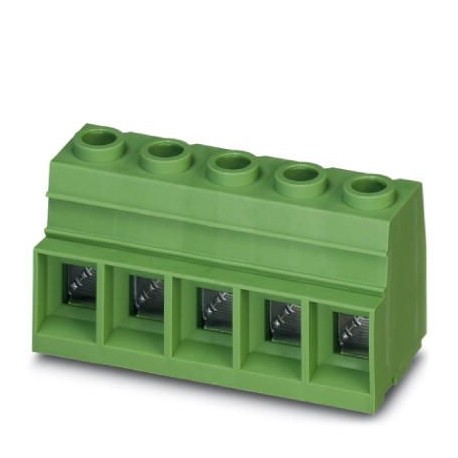

MKDSP 25/ 5-15,00 1932614 PHOENIX CONTACT PCB terminal block
$0.00USD
3396 in stock
Key Specifications
GTIN:4017918902117
Orderkey:1932614
Catalog page:Page 455 (C-1-2013)
Packing unit:25 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918902117 |
| Orderkey | 1932614 |
| Catalog page | Page 455 (C-1-2013) |
| Packing unit | 25 pc |
| Country of origin | SK (Slovakia) |
| Note (Dimensions) | Tightening torque ≤ 25 mm² is 2.5 Nm, > 25 mm² is 4.5 Nm |
| (Connection data) | Cable cross section:16 mm²; Torque:2.5 Nm; Form of cable:round, single-strand, class 1(re) |
| Custom tariff number | 85369010 |
| Minimum order quantity | 25 pc |
| Screw thread (Dimensions) | M5 |
| Pitch (Key Commercial Data) | 15 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 39 mm |
| Stripping length (Dimensions) | 18 mm |
| Range of articles (Dimensions) | MKDSP 25 |
| Nominal current IN (Dimensions) | 125 A |
| Solder pin surface (Dimensions) | |
| Specification (Connection data) | DIN VDE 0276-603 (VDE 0276-603):2010-03 |
| Insulating material (Dimensions) | PA |
| Number of positions (Dimensions) | 5 |
| Dimension a (Key Commercial Data) | 60 mm |
| Maximum load current (Dimensions) | 125 A |
| Rated voltage (II/2) (Dimensions) | 1000 V |
| Width [ w ] (Key Commercial Data) | 75 mm |
| Height [ h ] (Key Commercial Data) | 43.5 mm |
| Length [ l ] (Key Commercial Data) | 31 mm |
| Nominal cross section (Dimensions) | 35 mm² |
| Rated voltage (III/2) (Dimensions) | 1000 V |
| Rated voltage (III/3) (Dimensions) | 1000 V |
| Tightening torque max (Dimensions) | 4.5 Nm |
| Hole diameter (Key Commercial Data) | 1.6 mm |
| Tightening torque, min (Dimensions) | 2.5 Nm |
| Solder pin [P] (Key Commercial Data) | 4.5 mm |
| Weight per Piece (excluding packing) | 104.680 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Insulating material group (Dimensions) | I |
| Internal cylindrical gage (Dimensions) | B7 |
| Rated surge voltage (II/2) (Dimensions) | 8 kV |
| (Information on the aluminum conductor) | CUL |
| Rated surge voltage (III/2) (Dimensions) | 8 kV |
| Rated surge voltage (III/3) (Dimensions) | 8 kV |
| Conductor cross section AWG max. (General) | 2 |
| Conductor cross section AWG min. (General) | 20 |
| Conductor cross section solid max. (General) | 35 mm² |
| Conductor cross section solid min. (General) | 0.5 mm² |
| Connection in acc. with standard (Dimensions) | EN-VDE |
| Conductor cross section flexible max. (General) | 35 mm² |
| Conductor cross section flexible min. (General) | 0.5 mm² |
| Note on conductor pretreatment (Connection data) | The following measures are required for durable and reliable contacting of the aluminum conductor: the stripped end of the aluminum conductor must be separated from the oxide layer using a blade, and immediately dipped in non-acid and non-alkali Vaseline. The pretreatment must be repeated when connecting the conductors anew. |
| Flammability rating according to UL 94 (Dimensions) | V0 |
| Cross section-torque-form of cable (Connection data) | Cable cross section:35 mm²; Torque:4.5 Nm; Form of cable:round, single-strand, class 1(re) |
| 2 conductors with same cross section, solid max. (General) | 6 mm² |
| 2 conductors with same cross section, solid min. (General) | 0.5 mm² |
| 2 conductors with same cross section, stranded max. (General) | 6 mm² |
| 2 conductors with same cross section, stranded min. (General) | 0.5 mm² |
| Connection in acc. with standard (Information on the aluminum conductor) | EN-VDE |
| Flammability rating according to UL 94 (Information on the aluminum conductor) | V0 |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (General) | 35 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (General) | 1.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (General) | 35 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (General) | 1 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (General) | 4 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (General) | 0.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (General) | 16 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (General) | 0.5 mm² |
Product Description
Terminal block for printed circuit board, nominal current: 125 A, nominal voltage (III/2): 1000 V, nominal cross-section: 35 mm², number of potentials: 5, number of rows: 1, number of poles per row: 5
