MKDSP 10HV/ 3-12,7 BK T20L

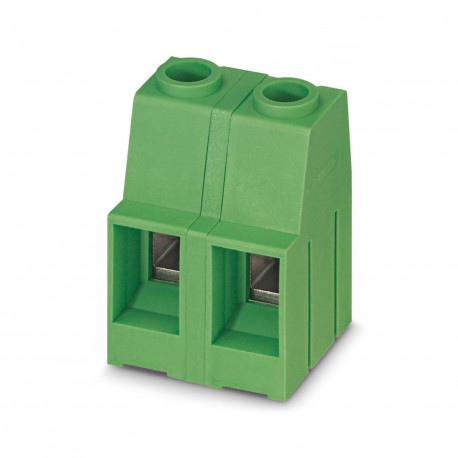

MKDSP 10HV/ 3-12,7 BK T20L 1707812 PHOENIX CONTACT Terminal block for printed circuit board, rated current: ..
$0.00USD
3317 in stock
Key Specifications
ETIM 4.0 (eCl@ss):EC002643
ETIM 5.0 (eCl@ss):EC002643
ETIM 6.0 (eCl@ss):EC002643
UNSPSC 13.2 (ETIM):39121432
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| ETIM 4.0 (eCl@ss) | EC002643 |
| ETIM 5.0 (eCl@ss) | EC002643 |
| ETIM 6.0 (eCl@ss) | EC002643 |
| UNSPSC 13.2 (ETIM) | 39121432 |
| GTIN (Your advantages) | 4046356947626 |
| Orderkey (Your advantages) | 1707812 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Packing unit (Your advantages) | 1 |
| Screw thread (Key Commercial Data) | M4 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Custom tariff number (Your advantages) | 85369010 |
| Stripping length (Key Commercial Data) | 10 mm |
| Range of articles (Key Commercial Data) | MKDSP 10HV |
| Nominal current IN (Key Commercial Data) | 76 A |
| Solder pin surface (Key Commercial Data) | Sn |
| Insulating material (Key Commercial Data) | PA |
| Number of positions (Key Commercial Data) | 3 |
| Conductor cross section AWG max. (General) | 6 |
| Conductor cross section AWG min. (General) | 20 |
| Rated voltage (II/2) (Key Commercial Data) | 1000 V |
| Nominal cross section (Key Commercial Data) | 10 mm² |
| Rated voltage (III/2) (Key Commercial Data) | 1000 V |
| Rated voltage (III/3) (Key Commercial Data) | 1000 V |
| Tightening torque max (Key Commercial Data) | 1.5 Nm |
| Tightening torque, min (Key Commercial Data) | 1.2 Nm |
| eCl@ss 5.1 (Environmental Product Compliance) | 27141190 |
| eCl@ss 6.0 (Environmental Product Compliance) | 27261101 |
| eCl@ss 8.0 (Environmental Product Compliance) | 27440401 |
| eCl@ss 9.0 (Environmental Product Compliance) | 27440401 |
| Internal cylindrical gage (Key Commercial Data) | B6 |
| Rated surge voltage (II/2) (Key Commercial Data) | 6 kV |
| Rated surge voltage (III/2) (Key Commercial Data) | 8 kV |
| Rated surge voltage (III/3) (Key Commercial Data) | 8 kV |
| Connection in acc. with standard (Connection data) | EN-VDE |
| Connection in acc. with standard (Key Commercial Data) | EN-VDE |
| 2 conductors with same cross section, solid max. (General) | 4 mm² |
| 2 conductors with same cross section, solid min. (General) | 0.5 mm² |
| 2 conductors with same cross section, stranded max. (General) | 4 mm² |
| 2 conductors with same cross section, stranded min. (General) | 0.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (General) | 2.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (General) | 0.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (General) | 6 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (General) | 0.5 mm² |
Product Description
Terminal block for printed circuit board, nominal current: 76 A, nominal voltage (III/2): 1000 V, nominal cross-section: 16 mm², number of potentials: 3, number of rows: 1, number of poles per row: 3,
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
PCB terminal block, nominal current: 76 A, nom. voltage: 1000 V, pitch: 12.7 mm, number of positions: 3, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: black
