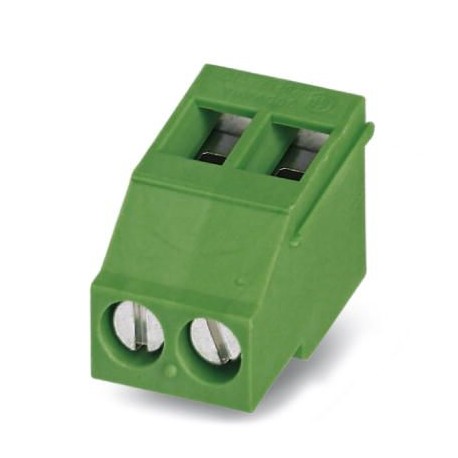

MKDSF 3/ 2 BK BD:4,5 1732267 PHOENIX CONTACT PCB terminal block
$0.00USD
4081 in stock
Key Specifications
GTIN:4017918231293
Note:Made to Order (non-returnable)
Orderkey:1732267
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918231293 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1732267 |
| Packing unit | 50 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85369010 |
| (Ambient conditions) | Test passed |
| Minimum order quantity | 50 pc |
| Pitch (Key Commercial Data) | 5 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Rated current (Pull-out test) | 24 A |
| Torque (Electrical parameters) | 0.5 Nm ... 0.6 Nm |
| Pitch (Material data - housing) | 5 mm |
| Rated current (Item properties) | 24 A |
| Pin layout (Key Commercial Data) | Linear pinning |
| Specification (Electrical tests) | IEC 60664-1:2007-04 |
| Screw thread (Key Commercial Data) | M3 |
| Mounting type (Key Commercial Data) | Wave soldering |
| (Termination and connection method) | 2.5 mm² / flexible / > 50 N |
| Type of note (Packaging information) | Note on application |
| Weight per Piece (excluding packing) | 3.980 g |
| Dimension a (Material data - housing) | 5 mm |
| Width [ w ] (Material data - housing) | 10 mm |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Contact material (Connection capacity) | Cu alloy |
| Height [ h ] (Material data - housing) | 15.3 mm |
| Length [ l ] (Material data - housing) | 18 mm |
| Number of levels (Key Commercial Data) | 1 |
| Connection method (Key Commercial Data) | Screw connection with tension sleeve |
| Range of articles (Key Commercial Data) | MKDSF 3 |
| (Air clearances and creepage distances) | CSA |
| Pin dimensions (Material data - housing) | 0.9 x 0.9 mm |
| Solder pin [P] (Material data - housing) | 4.1 mm |
| Stripping length (Electrical parameters) | 8 mm |
| Number of positions (Key Commercial Data) | 2 |
| Hole diameter (Dimensions for the product) | 1.3 mm |
| Number of potentials (Key Commercial Data) | 2 |
| Drive form screw head (Key Commercial Data) | Slotted (L) |
| Number of connections (Key Commercial Data) | 2 |
| Rated surge voltage (III/2) (Pull-out test) | 4 kV |
| Insulating material group (Electrical tests) | I |
| Dimensional drawing (Material data - housing) | |
| Insulating material (Material data - contact) | PA |
| Rated surge voltage (II/2) (Electrical tests) | 4 kV |
| Rated surge voltage (III/2) (Item properties) | 4 kV |
| Surface characteristics (Connection capacity) | Tin-plated |
| Type of packaging (Dimensions for PCB design) | packed in cardboard |
| Pieces per package (Dimensions for PCB design) | 50 |
| Rated surge voltage (III/2) (Electrical tests) | 4 kV |
| Rated surge voltage (III/3) (Electrical tests) | 4 kV |
| Brief article description (Key Commercial Data) | PCB terminal block |
| Rated insulation voltage (III/2) (Pull-out test) | 400 V |
| Pull-out test (Termination and connection method) | IEC 60999-1:1990-05 |
| Rated insulation voltage (II/2) (Electrical tests) | 630 V |
| Rated insulation voltage (III/2) (Item properties) | 400 V |
| Insulating material group (Material data - contact) | I |
| Rated insulation voltage (III/2) (Electrical tests) | 400 V |
| Rated insulation voltage (III/3) (Electrical tests) | 250 V |
| CTI according to IEC 60112 (Material data - contact) | 600 |
| Conductor cross section solid (Electrical parameters) | 0.2 mm² ... 4 mm² |
| Height (without solder pin) (Material data - housing) | 11.2 mm |
| Denomination packing units (Dimensions for PCB design) | Pcs. |
| Conductor cross section flexible (Electrical parameters) | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG / kcmil (Electrical parameters) | 24 ... 12 |
| Ambient temperature (assembly) (General product information) | -5 °C ... 100 °C |
| Ambient temperature (operation) (General product information) | -40 °C (Depending on the current carrying capacity/derating curve) |
| Test for conductor damage and slackening (Ambient conditions) | IEC 60999-1:1990-05 |
| Metal surface soldering area (top layer) (Connection capacity) | Tin (5 - 7 µm Sn) |
| Metal surface terminal point (top layer) (Connection capacity) | Tin (5 - 7 µm Sn) |
| Flammability rating according to UL 94 (Material data - contact) | V0 |
| Metal surface soldering area (middle layer) (Connection capacity) | Nickel (2 - 3 µm Ni) |
| Metal surface terminal point (middle layer) (Connection capacity) | Nickel (2 - 3 µm Ni) |
| 2 conductors with same cross section, solid (Electrical parameters) | 0.2 mm² ... 1.5 mm² |
| Ambient temperature (storage/transport) (General product information) | -40 °C ... 70 °C |
| 2 conductors with same cross section, flexible (Electrical parameters) | 0.2 mm² ... 1.5 mm² |
| Connection in acc. with standard (Air clearances and creepage distances) | EN-VDE |
| Glow wire flammability index GWFI according to EN 60695-2-12 (Material data - contact) | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 (Material data - contact) | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 (Material data - contact) | 125 °C |
| Conductor cross section / conductor type / tensile force (Termination and connection method) | 0.2 mm² / solid / > 10 N |
| Conductor cross section, flexible, with ferrule, with plastic sleeve (Electrical parameters) | 0.25 mm² ... 2.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve (Electrical parameters) | 0.25 mm² ... 2.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve (Electrical parameters) | 0.25 mm² ... 0.75 mm² |
| 2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve (Electrical parameters) | 0.5 mm² ... 1.5 mm² |
Product Description
Terminal block for printed circuit board, nominal current: 24 A, nominal voltage (III/2): 400 V, nominal cross-section: 2.5 mm², number of potentials: 2, number of rows: 1, number of poles per row: 2,
