In Stock Hot Product
MKDS 5/14-6,35

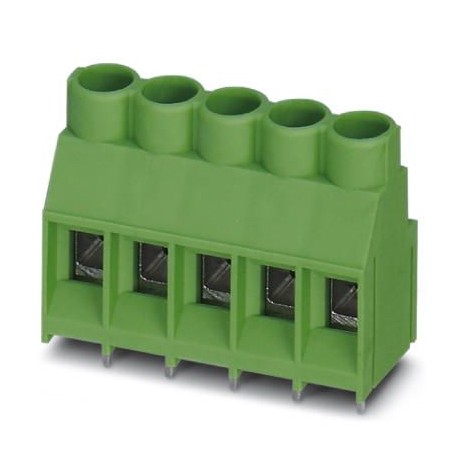

MKDS 5/14-6,35 1713804 PHOENIX CONTACT Terminal p. printed circuit board, nominal Current: 32 A, nominal Vol..
$0.00USD
3808 in stock
Key Specifications
EAN:Four trillion seventeen billion nine hundred eighteen million two hundred thirty two thousand sixty one
Key order:One million seven hundred thirteen thousand eight hundred four
Key selling:AABBAA -
Packing unit:50 pcs
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | Four trillion seventeen billion nine hundred eighteen million two hundred thirty two thousand sixty one |
| Key order | One million seven hundred thirteen thousand eight hundred four |
| Key selling | AABBAA - |
| Packing unit | 50 pcs |
| Country of origin | (Germany) |
| (Data connection) | CSA |
| Tariff number tariff | Eighty five million three hundred sixty nine thousand ten |
| Step (Data commercial) | 6.35 mm |
| Gauge male (Dimensions) | A4 |
| Average (Data commercial) | 82.55 mm |
| Screw thread (Dimensions) | M3 |
| Number of poles (Dimensions) | Fourteen |
| Length desaislar (Dimensions) | 8 mm |
| Width [ w ] (Data commercial) | 88.9 mm |
| Height [ h ] (Data commercial) | 26,6 mm |
| Length [ l ] (Data commercial) | 12.5 mm |
| (Standards and specifications) | You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
| Diameter hole (Data commercial) | 1.3 mm |
| Family of articles (Dimensions) | MKDS 5 |
| Nominal current IN (Dimensions) | 32 To |
| Surface pin welding (Dimensions) | |
| Maximum load current (Dimensions) | 32 To |
| Unit weight (excluding packaging) | 37,509 g |
| Nominal cross section (Dimensions) | 4 mm2 |
| Length of pin [P] (Data commercial) | 5.1 mm |
| Tightening torque max. (Dimensions) | 0.6 Nm |
| Tightening torque min. (Dimensions) | 0.5 Nm |
| Group insulating material (Dimensions) | I |
| Tension and sizing (II/2) (Dimensions) | 1000 V |
| Tension and sizing (III/2) (Dimensions) | 630 V |
| Tension and sizing (III/3) (Dimensions) | 500 V |
| Height of construction (Data commercial) | 21.5 mm |
| Section of conductor AWG max. (Overview) | Ten |
| Section of conductor AWG min. (Overview) | Twenty four |
| China RoHS (Standards and specifications) | Space of time for the intended use (FEUP): 50 years |
| Transient voltage design (II/2) (Dimensions) | 6 kV |
| Connection according to standard (Dimensions) | EN-VDE |
| Transient voltage design (III/2) (Dimensions) | 6 kV |
| Transient voltage design (III/3) (Dimensions) | 6 kV |
| Connection according to standard (Data connection) | EN-VDE |
| Class of flammability according to UL 94 (Dimensions) | V0 |
| Class of flammability according to UL 94 (Data connection) | V0 |
| 2 conductors with same cross section, rigid max. (Overview) | 1.5 mm2 |
| 2 conductors with same cross section, rigid min. (Overview) | 0,2 mm2 |
| 2 conductors with same cross section, flexible max. (Overview) | 1.5 mm2 |
| 2 conductors with same cross section, flexible, min. (Overview) | 0,2 mm2 |
| 2 conductors with same cross section, flexible with AEH without plastic sleeve max. (Overview) | 0.75 mm2 |
| 2 conductors with same cross section, flexible with AEH without plastic sleeve min. (Overview) | 0.25 mm2 |
| 2 conductors with same cross section, flexible with TWIN-AEH with plastic sleeve max. (Overview) | 2.5 mm2 |
| 2 conductors with same cross section, flexible with TWIN-AEH with plastic sleeve min. (Overview) | 0.5 mm2 |
