MKDS 1/ 2-3,81 SMD BK

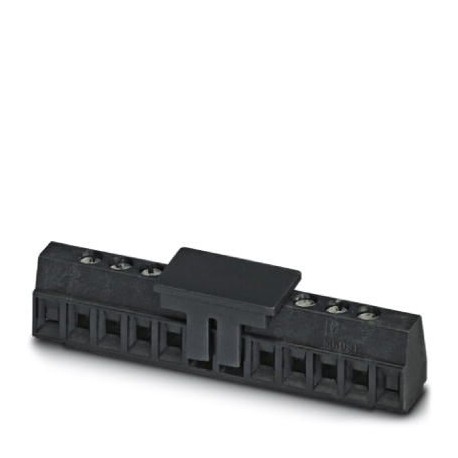

MKDS 1/ 2-3,81 SMD BK 1727230 PHOENIX CONTACT PCB terminal block
$1.68USD
5996 in stock
Key Specifications
GTIN:4017918025601
Orderkey:1727230
Catalog page:Page 82 (C-1-2013)
Packing unit:35 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918025601 |
| Orderkey | 1727230 |
| Catalog page | Page 82 (C-1-2013) |
| Packing unit | 35 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 85369010 |
| Minimum order quantity | 35 pc |
| Note (Connection capacity) | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Pitch (Key Commercial Data) | 3.81 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Note (Packaging information) | Pick and place pads may protrude beyond the components. The PCB layout must ensure that collisions are avoided when components are assembled. |
| Torque (Electrical parameters) | 0.22 Nm ... 0.25 Nm |
| Pitch (Material data - housing) | 3.81 mm |
| Rated current (Item properties) | 8 A |
| Pin layout (Key Commercial Data) | Linear pad geometry |
| Caption (Material data - housing) | Schematic representation – for additional information, see product range drawing in the Download Center |
| Rated current (Ambient conditions) | 8 A |
| Screw thread (Key Commercial Data) | M2 |
| Mounting type (Key Commercial Data) | SMD soldering |
| Type of note (Packaging information) | Note on application |
| Weight per Piece (excluding packing) | 3.350 g |
| Dimension a (Material data - housing) | 3.81 mm |
| Width [ w ] (Material data - housing) | 7.61 mm |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Contact material (Connection capacity) | Cu alloy |
| Height [ h ] (Material data - housing) | 9.2 mm |
| Length [ l ] (Material data - housing) | 7.3 mm |
| Number of levels (Key Commercial Data) | 1 |
| Connection method (Key Commercial Data) | Screw connection with tension sleeve |
| Range of articles (Key Commercial Data) | MKDS 1/..-SMD |
| (Air clearances and creepage distances) | CSA |
| Stripping length (Electrical parameters) | 5 mm |
| Number of positions (Key Commercial Data) | 2 |
| Number of potentials (Key Commercial Data) | 2 |
| Drive form screw head (Key Commercial Data) | Slotted |
| Number of connections (Key Commercial Data) | 2 |
| Insulating material group (Electrical tests) | IIIa |
| Dimensional drawing (Material data - housing) | |
| Insulating material (Material data - contact) | PA |
| Rated surge voltage (II/2) (Electrical tests) | 2.5 kV |
| Rated surge voltage (III/2) (Item properties) | 2.5 kV |
| Surface characteristics (Connection capacity) | Tin-plated |
| Rated surge voltage (III/2) (Electrical tests) | 2.5 kV |
| Rated surge voltage (III/3) (Electrical tests) | 2.5 kV |
| Type of packaging (Dimensions for the product) | Tube magazine |
| Brief article description (Key Commercial Data) | PCB terminal block |
| Pieces per package (Dimensions for the product) | 35 |
| Rated surge voltage (III/2) (Ambient conditions) | 2.5 kV |
| Rated insulation voltage (II/2) (Electrical tests) | 250 V |
| Rated insulation voltage (III/2) (Item properties) | 160 V |
| Insulating material group (Material data - contact) | IIIa |
| Rated insulation voltage (III/2) (Electrical tests) | 160 V |
| Rated insulation voltage (III/3) (Electrical tests) | 160 V |
| CTI according to IEC 60112 (Material data - contact) | |
| Conductor cross section solid (Electrical parameters) | 0.14 mm² ... 1.5 mm² |
| Height (without solder pin) (Material data - housing) | 9.2 mm |
| Rated insulation voltage (III/2) (Ambient conditions) | 160 V |
| Denomination packing units (Dimensions for the product) | Pcs. |
| Conductor cross section flexible (Electrical parameters) | 0.14 mm² ... 1 mm² |
| Conductor cross section AWG / kcmil (Electrical parameters) | 26 ... 16 |
| Ambient temperature (assembly) (General product information) | -5 °C ... 100 °C |
| Ambient temperature (operation) (General product information) | -40 °C (dependent on the derating curve) |
| Metal surface soldering area (top layer) (Connection capacity) | Tin (5 - 7 µm Sn) |
| Metal surface terminal point (top layer) (Connection capacity) | Tin (5 - 7 µm Sn) |
| Flammability rating according to UL 94 (Material data - contact) | V0 |
| Metal surface soldering area (middle layer) (Connection capacity) | Nickel (2 - 3 µm Ni) |
| Metal surface terminal point (middle layer) (Connection capacity) | Nickel (2 - 3 µm Ni) |
| 2 conductors with same cross section, solid (Electrical parameters) | 0.14 mm² ... 0.5 mm² |
| Ambient temperature (storage/transport) (General product information) | -40 °C ... 70 °C |
| 2 conductors with same cross section, flexible (Electrical parameters) | 0.14 mm² ... 0.2 mm² |
| Connection in acc. with standard (Air clearances and creepage distances) | EN-VDE |
| Flammability rating according to UL 94 (Air clearances and creepage distances) | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 (Material data - contact) | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 (Material data - contact) | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 (Material data - contact) | 125 °C |
| Conductor cross section, flexible, with ferrule, with plastic sleeve (Electrical parameters) | 0.25 mm² ... 0.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve (Electrical parameters) | 0.25 mm² ... 0.5 mm² |
Product Description
Terminal block for printed circuit board, nominal current: 8 A, nominal voltage (III/2): 160 V, nominal section: 1 mm², number of potentials: 2, number of rows: 1, number of poles per row: 2, family o
