MK3DS 1,5/ 3-5,08-BC

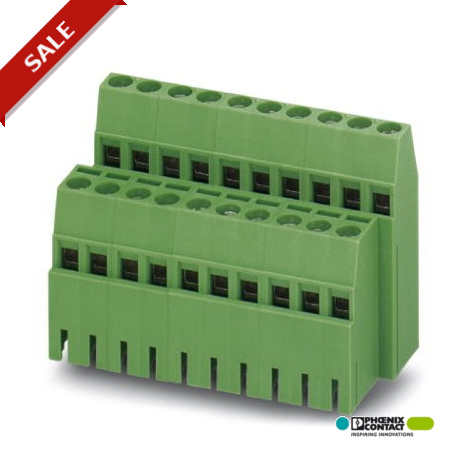

MK3DS 1,5/ 3-5,08-BC 1706426 PHOENIX CONTACT PCB terminal block, Nominal current: 15 A, Nom. voltage: 400 V,..
$5.23USD
1961 in stock
Key Specifications
Pitch:5.08 mm
Height:36.6 mm
Length:22.2 mm
Dimension a:10.16 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Pitch | 5.08 mm |
| Height | 36.6 mm |
| Length | 22.2 mm |
| Dimension a | 10.16 mm |
| Screw thread | M3 |
| Hole diameter | 1.3 mm |
| Pin dimensions | 0,9 x 0,9 mm |
| Stripping length | 7 mm |
| Range of articles | MK3DS 1,5 |
| Nominal current IN | 15 A |
| Solder pin surface | Sn |
| Insulating material | PA |
| Number of positions | 3 |
| Maximum load current | 17.5 A (with a 2.5 mm² conductor cross section) |
| Rated voltage (II/2) | 630 V |
| Constructional height | 37 mm |
| Nominal cross section | 1.5 mm² |
| Rated voltage (III/2) | 400 V |
| Rated voltage (III/3) | 250 V |
| Tightening torque max | 0.6 Nm |
| Tightening torque, min | 0.5 Nm |
| Length of the solder pin | 3.5 mm |
| Insulating material group | I |
| Internal cylindrical gage | A1 |
| Rated surge voltage (II/2) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (III/3) | 4 kV |
| Conductor cross section AWG max. | 14 |
| Conductor cross section AWG min. | 26 |
| Connection in acc. with standard | EN-VDE |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section solid min. | 0.14 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.14 mm² |
| Flammability rating according to UL 94 | V0 |
| 2 conductors with same cross section, solid max. | 1 mm² |
| 2 conductors with same cross section, solid min. | 0.14 mm² |
| 2 conductors with same cross section, stranded max. | 0.75 mm² |
| 2 conductors with same cross section, stranded min. | 0.14 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 1.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 1.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.25 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 0.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 0.25 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 0.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 0.5 mm² |
Product Description
Terminal block for printed circuit board, number of poles per row: 3, family of articles: MK3DS 1.5/.. - BC, pitch: 5.08 mm, screw clamping shape: L Longitudinal slot, color: green, Pin arrangement: L
