MINI MCR-SL-R-UI-SP

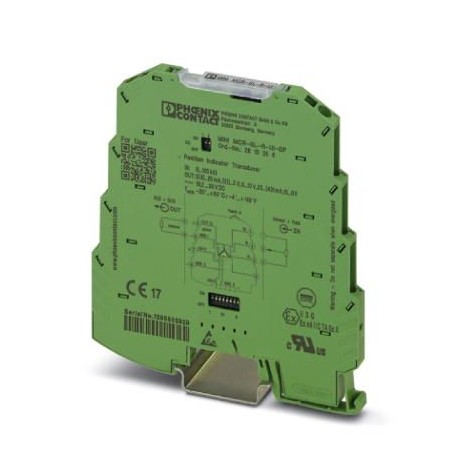

MINI MCR-SL-R-UI-SP 2810256 PHOENIX CONTACT Resistance/potiposition transducer
$0.00USD
3880 in stock
Key Specifications
GTIN:4017918996079
Orderkey:2810256
(EMC data):Class I, Div. 2, Groups A, B, C, D T4
Catalog page:Page 111 (C-7-2015)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918996079 |
| Orderkey | 2810256 |
| (EMC data) | Class I, Div. 2, Groups A, B, C, D T4 |
| Catalog page | Page 111 (C-7-2015) |
| Packing unit | 1 pc |
| (Input data) | 20 mA ... 4 mA |
| (Output data) | 19.2 V DC ... 30 V DC (The DIN rail bus connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, Order No. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715)) |
| ATEX (EMC data) | II 3 G Ex nA IIC T4 Gc X |
| Country of origin | DE (Germany) |
| Custom tariff number | 85437090 |
| Designation (General) | Conducted interferences |
| ATEX (Connection data) | II 3 G Ex nA IIC T4 Gc X |
| Conformance (EMC data) | CE-compliant |
| Designation (EMC data) | Conducted interferences |
| Color (Connection data) | green |
| Noise emission (EMC data) | EN 61000-6-4 |
| UL, USA/Canada (EMC data) | UL 508 Recognized |
| Depth (Key Commercial Data) | 102.5 mm |
| Width (Key Commercial Data) | 6.2 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 93.1 mm |
| Supply voltage (Output data) | 24 V DC |
| Conformance (Connection data) | CE-compliant |
| Electrical isolation (EMC data) | Basic insulation according to EN 61010 |
| Standards/regulations (General) | EN 61000-4-6 |
| Stripping length (Power supply) | 8 mm |
| Connection method (Power supply) | Spring-cage connection |
| Standards/regulations (EMC data) | EN 61000-4-6 |
| UL, USA/Canada (Connection data) | UL 508 Recognized |
| Current consumption (Output data) | < 25 mA (at 24 V DC) |
| Current output signal (Input data) | 0 mA ... 20 mA |
| Housing material (Connection data) | PBT |
| Potentiometer (Ambient conditions) | 100 Ω ... 100 kΩ |
| Voltage output signal (Input data) | 0 V ... 5 V |
| Weight per Piece (excluding packing) | 65.300 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Max. current output signal (Input data) | 23 mA |
| Max. voltage output signal (Input data) | 12.5 V |
| Electromagnetic compatibility (EMC data) | Conformance with EMC directive |
| Connection in acc. with standard (EMC data) | CUL |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 65 °C |
| Load/output load current output (Input data) | < 500 Ω (20 mA) |
| Load/output load voltage output (Input data) | > 10 kΩ |
| Maximum transmission error (Connection data) | < 0.2 % |
| Reference voltage source (Ambient conditions) | < 3.6 V |
| Conductor cross section AWG max. (Power supply) | 12 |
| Conductor cross section AWG min. (Power supply) | 24 |
| Ambient temperature (operation) (Connection data) | -20 °C ... 65 °C |
| Conductor cross section solid max. (Power supply) | 2.5 mm² |
| Conductor cross section solid min. (Power supply) | 0.2 mm² |
| Maximum temperature coefficient (Connection data) | < 0.02 %/K |
| Temperature coefficient, typical (Connection data) | < 0.02 %/K |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Conductor cross section flexible max. (Power supply) | 2.5 mm² |
| Conductor cross section flexible min. (Power supply) | 0.2 mm² |
| Ambient temperature (storage/transport) (Connection data) | -40 °C ... 85 °C |
| Typical deviation from the measuring range final value (General) | 5 % |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (EMC data) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (EMC data) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (EMC data) | HL 1 - HL 2 |
