MINI MCR-SL-PTB-SP

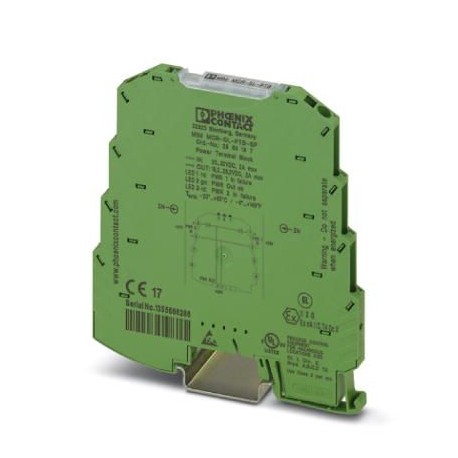

MINI MCR-SL-PTB-SP 2864147 PHOENIX CONTACT Power terminal block
$0.00USD
3448 in stock
Key Specifications
GTIN:4017918974787
Orderkey:2864147
Catalog page:Page 118 (C-7-2015)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918974787 |
| Orderkey | 2864147 |
| Catalog page | Page 118 (C-7-2015) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85437090 |
| (Connection data, input) | Class I, Div. 2, Groups A, B, C, D T5 |
| Stripping length (General) | 8 mm |
| Connection method (General) | Spring-cage connection |
| Depth (Key Commercial Data) | 102.5 mm |
| GL (Connection data, input) | GL EMC 2 D |
| Width (Key Commercial Data) | 6.2 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 93.1 mm |
| ATEX (Connection data, input) | II 3 G Ex nA IIC T4 Gc X |
| Mounting position (Output data) | any |
| Output voltage range (Input data) | Input voltage - 0.8 V |
| Assembly instructions (Output data) | The T connector can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715. |
| Conformance (Connection data, input) | CE-compliant |
| Designation (Connection data, input) | Conducted interferences |
| Weight per Piece (excluding packing) | 59.800 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Noise emission (Connection data, input) | EN 61000-6-4 |
| UL, USA/Canada (Connection data, input) | UL 508 Recognized |
| Conductor cross section AWG max. (General) | 12 |
| Conductor cross section AWG min. (General) | 24 |
| Nominal input voltage (Ambient conditions) | 24 V DC |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 65 °C |
| Conductor cross section solid max. (General) | 2.5 mm² |
| Conductor cross section solid min. (General) | 0.2 mm² |
| Evaluation criterion (Connection data, input) | A |
| Standards/regulations (Connection data, input) | EN 61000-4-6 |
| Conductor cross section flexible max. (General) | 2.5 mm² |
| Conductor cross section flexible min. (General) | 0.2 mm² |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Electromagnetic compatibility (Connection data, input) | Conformance with EMC directive |
| Connection in acc. with standard (Connection data, input) | CUL |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Connection data, input) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Connection data, input) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Connection data, input) | HL 1 - HL 2 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
