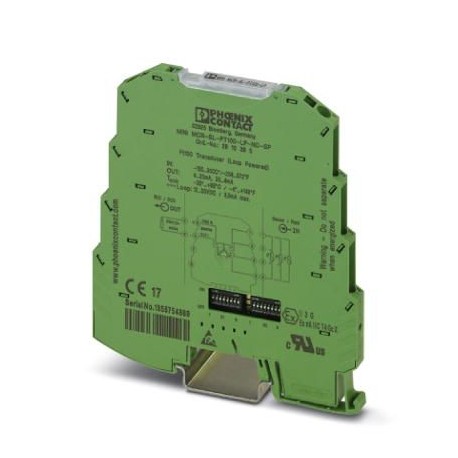

MINI MCR-SL-PT100-LP-NC-SP 2810395 PHOENIX CONTACT Temperature measuring transducer
$0.00USD
3686 in stock
Key Specifications
GTIN:4046356142472
Orderkey:2810395
(EMC data):Class I, Div. 2, Groups A, B, C, D T4
Catalog page:Page 106 (C-7-2015)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356142472 |
| Orderkey | 2810395 |
| (EMC data) | Class I, Div. 2, Groups A, B, C, D T4 |
| Catalog page | Page 106 (C-7-2015) |
| Depth (Note) | 102.5 mm |
| Packing unit | 1 pc |
| Width (Note) | 6.2 mm |
| (Input data) | 20 mA ... 4 mA |
| Height (Note) | 93.1 mm |
| ATEX (EMC data) | II 3 G Ex nA IIC T4 Gc X |
| Country of origin | DE (Germany) |
| (Connection data) | Class I, Div. 2, Groups A, B, C, D T4 |
| Ripple (Input data) | < 20 mVPP(at 500 Ω) |
| Custom tariff number | 85437090 |
| Designation (General) | Conducted interferences |
| ATEX (Connection data) | II 3 G Ex nA IIC T4 Gc X |
| Conformance (EMC data) | CE-compliant |
| Designation (EMC data) | Conducted interferences |
| Color (Connection data) | green |
| Designation (Output data) | Loop-powered |
| Noise emission (EMC data) | EN 61000-6-4 |
| UL, USA/Canada (EMC data) | UL 508 Recognized |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Conformance (Connection data) | CE-compliant |
| Maximum altitude (Dimensions) | ≤ 2000 m |
| Number of outputs (Input data) | 1 |
| Electrical isolation (EMC data) | Basic insulation according to EN 61010 |
| Power consumption (Output data) | < 150 mW (without signal current) |
| Standards/regulations (General) | EN 61000-4-6 |
| Stripping length (Power supply) | 8 mm |
| Connection method (Power supply) | Spring-cage connection |
| Max. output current (Input data) | 23 mA (output limit) |
| Noise emission (Connection data) | EN 61000-6-4 |
| Noise immunity (Connection data) | EN 61000-6-2 When being exposed to interference, there may be minimal deviations. |
| Standards/regulations (EMC data) | EN 61000-4-6 |
| UL, USA/Canada (Connection data) | UL 508 Recognized |
| Linearity error (Connection data) | < 0.05 % (for full measuring range) |
| Current output signal (Input data) | 4 mA ... 20 mA |
| Housing material (Connection data) | PBT |
| Supply voltage range (Output data) | 12 V DC ... 30 V DC |
| Mounting position (Connection data) | any |
| Weight per Piece (excluding packing) | 100.700 g |
| Degree of pollution (Connection data) | 2 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Configurable/programmable (Input data) | Yes, unconfigured |
| Electrical isolation (Connection data) | Basic insulation according to EN 61010 |
| Max. current consumption (Output data) | < 4.5 mA (without signal current) |
| Overvoltage category (Connection data) | II |
| Electromagnetic compatibility (EMC data) | Conformance with EMC directive |
| Sensor input current (Ambient conditions) | 1 mA (constant) |
| Connection technology (Ambient conditions) | 2, 3, 4-wire |
| Rated insulation voltage (Connection data) | 30 V AC |
| Connection in acc. with standard (EMC data) | CUL |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 65 °C |
| Load/output load current output (Input data) | (Usupply- 12 V) / 22 mA |
| Utilization restriction (Key Commercial Data) | 1 |
| Configurable/programmable (Ambient conditions) | Yes, unconfigured |
| Conductor cross section AWG max. (Power supply) | 12 |
| Conductor cross section AWG min. (Power supply) | 24 |
| Electromagnetic compatibility (Connection data) | Conformance with EMC directive |
| Conductor cross section solid max. (Power supply) | 2.5 mm² |
| Conductor cross section solid min. (Power supply) | 0.2 mm² |
| Maximum temperature coefficient (Connection data) | < 0.02 %/K |
| Test voltage, input/output/supply (Connection data) | 1.5 kV (50 Hz, 1 min.) |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Conductor cross section flexible max. (Power supply) | 2.5 mm² |
| Conductor cross section flexible min. (Power supply) | 0.2 mm² |
| Sensor types (RTD) that can be used (Ambient conditions) | Pt 100 (IEC 60751/EN 60751) |
| Transmission error in the set measuring range (Connection data) | ((90 K / set measuring range [K]) + 0.05)% |
| Transmission error in the full measuring range (Connection data) | ≤ 0,25 % |
| Typical deviation from the measuring range final value (General) | 5 % |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (EMC data) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (EMC data) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (EMC data) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Connection data) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Connection data) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Connection data) | HL 1 - HL 2 |
