MINI MCR-EX-SD-20-25-LP

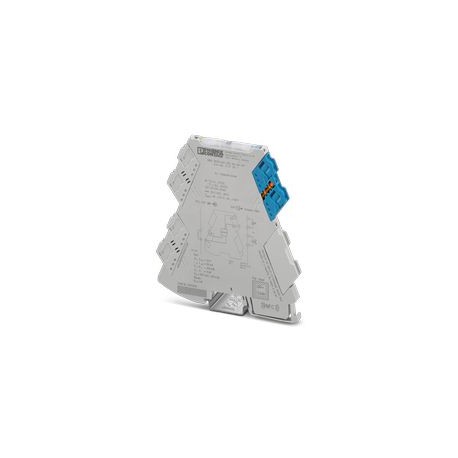

MINI MCR-EX-SD-20-25-LP 1157867 PHOENIX CONTACT Ex i, Valve control block for operating intrinsically safe s..
$0.00USD
4891 in stock
Key Specifications
:0.14 mm² ... 2.5 mm² (without ferrule)
Depth:119.2 mm
Width:6.2 mm
Height:109.81 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 0.14 mm² ... 2.5 mm² (without ferrule) | |
| Depth | 119.2 mm |
| Width | 6.2 mm |
| Height | 109.81 mm |
| Insulation | Double/reinforced insulation |
| Certificate | CE-compliant |
| Height range | > 2000 m ... 3000 m |
| Product type | Solenoid driver |
| Screw thread | M3 |
| Test voltage | 2.5 kV AC (50 Hz, 60 s) |
| Response time | < 50 ms |
| Identification | II (1) G [Ex ia Ga] IIC |
| Noise emission | IEC/EN 61000-6-4 |
| Noise immunity | IEC/EN 61000-6-2 |
| Output voltage | ≥ 9.6 V DC (25 mA) |
| Product family | MINI Analog Pro |
| Output resistor | ≥ 413 Ω (Internal resistance Ri) |
| Non-load voltage | > 20 V DC |
| Number of inputs | 1 |
| Pollution degree | 2 (≤ 5000 m) |
| Stripping length | 10 mm |
| Connection method | Screw connection |
| Cross section AWG | (converted acc. to IEC) |
| Number of outputs | 1 |
| Power consumption | < 1 W |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Current limitation | > 25 mA |
| Ex i circuits (EPL) | Ga |
| Short-circuit-proof | yes |
| Degree of protection | IP20 |
| Max. output power Po | 354 mW |
| Overvoltage category | II (≤ 5000 m) |
| Supply voltage range | loop-powered, no external supply necessary |
| Voltage input signal | 19.2 V DC ... 30 V DC (24 V DC, -20 % ... +25 %) |
| Ex installation (EPL) | Gc |
| Standards/regulations | IEC/EN 61010-1 |
| Max. output current Io | 59 mA |
| Max. output voltage Uo | 24 V |
| Rated insulation voltage | 300 Vrms |
| Conductor cross section AWG | 24 ... 12 (flexible) |
| Max. internal inductance Li | negligible |
| Max. internal capacitance Ci | 11 nF |
| Conductor cross section rigid | 0.2 mm² ... 1.5 mm² (with ferrule) |
| Electromagnetic compatibility | Tested in accordance with the following standards and regulations: EN 61326-1 For industrial use, NAMUR NE 21 |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Safety-related maximum voltage Um | 253 V AC |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| I (simple circuit): Max. external inductivity Lo/ Max. external capacitance Co | 90 mH / 5.23 µF |
| IIA (simple circuit): Max. external inductivity Lo/ Max. external capacitance Co | 70 mH / 3.33 µF |
| IIC (simple circuit): Max. external inductivity Lo/ Max. external capacitance Co | 10 mH / 114 nF |
| IIB/IIIC (simple circuit): Max. external inductivity Lo/ Max. external capacitance Co | 30 mH / 919 nF |
Product Description
Ex i-Solenoid driver for controlling Ex i solenoid valves in the Ex area. no-load voltage: 20 V DC, current limitation: 25 mA, Standard configuration, Loop-powered, Safety Integrity Level (SIL, IEC 61
