MINI MCR-EX-NAM-RO

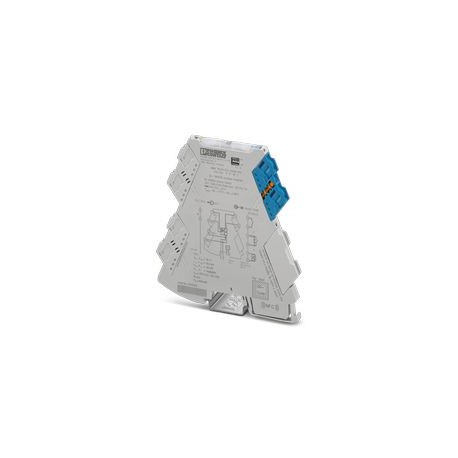

MINI MCR-EX-NAM-RO 1157862 PHOENIX CONTACT Ex i-NAMUR signal conditioner for the operation of proximity sens..
$387.62USD
67 in stock
Key Specifications
:Floating switch contacts
Depth:119.2 mm
Width:6.2 mm
Height:109.81 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Floating switch contacts | |
| Depth | 119.2 mm |
| Width | 6.2 mm |
| Height | 109.81 mm |
| Insulation | Double/reinforced insulation |
| Certificate | CE-compliant |
| Height range | > 2000 m ... 3000 m |
| Product type | Isolating switch transf. |
| Screw thread | M3 |
| Test voltage | 2.5 kV AC (50 Hz, 60 s) |
| Configuration | DIP switches |
| Identification | II (1) G [Ex ia Ga] IIC |
| Noise emission | EN 61000-6-4 |
| Noise immunity | EN 61000-6-2 |
| Product family | MINI Analog Pro |
| Status display | Green LED (supply voltage) |
| Line monitoring | Line fault detection |
| No. of channels | 1 |
| Housing material | PBT |
| Number of inputs | 1 |
| Pollution degree | 2 (≤ 5000 m) |
| Stripping length | 10 mm |
| Connection method | Screw connection |
| Cross section AWG | (converted acc. to IEC) |
| Mounting position | any |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Output description | Solid-state relay |
| Ex i circuits (EPL) | Ga |
| Switching frequency | ≤ 10 Hz |
| Degree of protection | IP20 |
| Max. output power Po | 28 mW |
| Overvoltage category | II (≤ 5000 m) |
| Supply voltage range | 19.2 V DC ... 30 V DC |
| Ex installation (EPL) | Gc |
| Standards/regulations | IEC/EN 61010-1 |
| Max. output current Io | 10.9 mA |
| Max. output voltage Uo | 10.1 V |
| Max. switching current | 1.16 A |
| Nominal supply voltage | 24 V DC |
| Available input sources | NAMUR proximity sensors (IEC/EN 60947-5-6) |
| Rated insulation voltage | 300 Vrms |
| Conductor cross section AWG | 24 ... 12 (flexible) |
| Max. internal inductance Li | negligible |
| Max. internal capacitance Ci | negligible |
| Conductor cross section rigid | 0.2 mm² ... 1.5 mm² (with ferrule) |
| Electromagnetic compatibility | Tested in accordance with the following standards and regulations: EN 61326-1 For industrial use, NAMUR NE 21 |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Safety-related maximum voltage Um | 253 V AC |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| I (mixed circuit): Max. external inductivity Lo/ Max. external capacitance Co | 100 mH / 1 µF |
| I (simple circuit): Max. external inductivity Lo/ Max. external capacitance Co | 300 mH / 160 µF |
| IIC (mixed circuit): Max. external inductivity Lo/ Max. external capacitance Co | 100 mH / 500 nF, 50 mH / 570 nF, 5 mH / 590 nF, 1 mH / 590 nF, 10 µH / 590 nF |
| IIA (simple circuit): Max. external inductivity Lo/ Max. external capacitance Co | 300 mH / 93 µF |
| IIC (simple circuit): Max. external inductivity Lo/ Max. external capacitance Co | 300 mH / 2.87 µF |
| IIIC (mixed circuit): Max. external inductivity Lo/ Max. external capacitance Co | 100 mH / 1 µF |
| IIB/IIA (mixed circuit): Max. external inductivity Lo/ Max. external capacitance Co | 100 mH / 1 µF |
| IIB/IIIC (simple circuit): Max. external inductivity Lo/ Max. external capacitance Co | 100 mH / 19.4 µF |
| I/IIB/IIA/IIIC (mixed circuit): Max. external inductivity Lo/ Max. external capacitance Co | 100 mH / 1 µF, 5 mH / 1 µF, 1 mH / 1 µF, 10 µH / 1 µF |
Product Description
Ex i-NAMUR signal conditioner for operating proximity sensors and switches. The signals are transmitted to the control level via 1 solid-state relay at the output (passive). Standard configuration, Li
