MINI MCR-2-UI-I-OLP

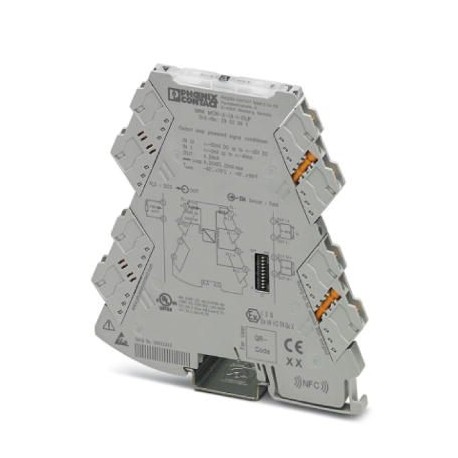

MINI MCR-2-UI-I-OLP 2902061 PHOENIX CONTACT Loop-powered isolators
$0.00USD
3682 in stock
Key Specifications
GTIN:4046356652100
Orderkey:2902061
(General):Class I, Zone 2, Group IIC T5
Catalog page:Page 79 (C-5-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356652100 |
| Orderkey | 2902061 |
| (General) | Class I, Zone 2, Group IIC T5 |
| Catalog page | Page 79 (C-5-2017) |
| Depth (Note) | 120.5 mm |
| Packing unit | 1 pc |
| Width (Note) | 6.2 mm |
| Height (Note) | 110.5 mm |
| ATEX (General) | II 3 G Ex nA IIC T4 Gc X |
| Country of origin | DE (Germany) |
| (Connection data) | Class I, Zone 2, Group IIC T5 |
| Ripple (Input data) | < 10 mVrms(at 600 Ω) |
| Custom tariff number | 85437090 |
| DNV GL-EMC (General) | A |
| (Ambient conditions) | 1 mA ... 5 mA |
| Conformance (General) | CE-compliant |
| ATEX (Connection data) | II 3 G Ex nA IIC T4 Gc X |
| Color (Connection data) | gray |
| Noise emission (General) | EN 61000-6-4 |
| UL, USA/Canada (General) | UL 508 Listed |
| DNV GL-Humidity (General) | B |
| DNV GL-Enclosure (General) | Required protection according to the Rules shall be provided upon installation on board |
| DNV GL-Vibration (General) | A |
| Screw thread (Power supply) | M3 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| DNV GL-Temperature (General) | B |
| Conformance (Connection data) | CE-compliant |
| Electrical isolation (General) | Reinforced insulation in accordance with IEC 61010-1 |
| Number of outputs (Input data) | 1 |
| Power consumption (Output data) | ≤ 600 mW |
| Stripping length (Power supply) | 10 mm |
| Connection method (Power supply) | Screw connection |
| Max. output current (Input data) | 32 mA |
| Noise emission (Connection data) | EN 61000-6-4 |
| Noise immunity (Connection data) | EN 61000-6-2 When being exposed to interference, there may be minimal deviations. |
| UL, USA/Canada (Connection data) | UL 508 Listed |
| No. of channels (Connection data) | 1 |
| Current output signal (Input data) | 4 mA ... 20 mA |
| Housing material (Connection data) | PBT |
| Supply voltage range (Output data) | 8 V DC ... 30 V DC (no separate supply voltage necessary) |
| Mounting position (Connection data) | any |
| Weight per Piece (excluding packing) | 107.900 g |
| Degree of pollution (Connection data) | 2 |
| Number of inputs (Ambient conditions) | 1 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Electrical isolation (Connection data) | Reinforced insulation in accordance with IEC 61010-1 |
| Overvoltage category (Connection data) | II |
| Electromagnetic compatibility (General) | Conformance with EMC directive |
| Max. input current (Ambient conditions) | 50 mA (Dielectric strength up to 30 V) |
| max. input voltage (Ambient conditions) | < 30 V |
| Limit frequency (3 dB) (Connection data) | approx. 30 Hz |
| Step response (10-90%) (Connection data) | 20 ms |
| Current input signal (Ambient conditions) | 0 mA ... 40 mA |
| Typical current consumption (Output data) | ≤ 20 mA |
| Voltage input signal (Ambient conditions) | 0 mV ... 1000 mV |
| Rated insulation voltage (Connection data) | 300 V (effective) |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 70 °C |
| Load/output load current output (Input data) | < 1000 Ω ((UB- 8 V) / 22 mA) |
| Maximum transmission error (Connection data) | ≤ 0.1 % (of final value) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Configurable/programmable (Ambient conditions) | Yes |
| Electromagnetic compatibility (Connection data) | Conformance with EMC directive |
| Maximum temperature coefficient (Connection data) | 0.01 %/K |
| Temperature coefficient, typical (Connection data) | 0.005 %/K |
| Input resistance current input (Ambient conditions) | 25 Ω (+ 0.7 V for test diode) |
| Test voltage, input/output/supply (Connection data) | 3 kV (50 Hz, 1 min.) |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Conductor cross section flexible max. (Power supply) | 1.5 mm² |
| Conductor cross section flexible min. (Power supply) | 0.2 mm² |
| Input resistance of voltage input (Ambient conditions) | approx. 100 kΩ (At ≤ 1 V, otherwise approximately 1 MΩ) |
| Max. AWG conductor cross section, flexible (Power supply) | 12 |
| Min. AWG conductor cross section, flexible (Power supply) | 24 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (General) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (General) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (General) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Connection data) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Connection data) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Connection data) | HL 1 - HL 2 |
| Single conductor/terminal point, solid, with ferrule, max. (Power supply) | 1.5 mm² |
| Single conductor/terminal point, solid, with ferrule, min. (Power supply) | 0.2 mm² |
| Single conductor/terminal point, solid, without ferrule, max. (Power supply) | 2.5 mm² |
| Single conductor/terminal point, solid, without ferrule, min. (Power supply) | 0.2 mm² |
Product Description
Loop-powered 2-way splitter with plug-in connection technology for galvanic separation of single-pole and bipolar analog signals. Input configurable via DIP switch. Screw connection technology, standa
