MINI MCR-2-NAM-2RO

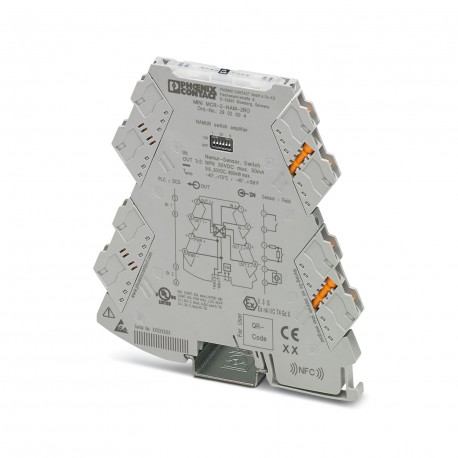

MINI MCR-2-NAM-2RO 2902004 PHOENIX CONTACT Isolation amplifier
$0.00USD
3650 in stock
Key Specifications
GTIN:4046356651851
Note:Made to Order (non-returnable)
Orderkey:2902004
(EMC data):Class I, Zone 2, Group IIC T6
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356651851 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2902004 |
| (EMC data) | Class I, Zone 2, Group IIC T6 |
| Catalog page | Page 90 (C-5-2017) |
| Depth (Note) | 120.5 mm |
| Packing unit | 1 pc |
| Width (Note) | 6.2 mm |
| Height (Note) | 110.5 mm |
| ATEX (EMC data) | II 3 G Ex nA IIC T4 Gc X |
| Country of origin | DE (Germany) |
| (Connection data) | Class I, Zone 2, Group IIC T6 |
| Custom tariff number | 85437090 |
| (Ambient conditions) | 35 mA (12 V DC) |
| DNV GL-EMC (EMC data) | A |
| Designation (General) | Conducted interferences |
| ATEX (Connection data) | II 3 G Ex nA IIC T4 Gc X |
| Conformance (EMC data) | CE-compliant |
| Designation (EMC data) | Conducted interferences |
| Color (Connection data) | gray |
| Noise emission (EMC data) | EN 61000-6-4 |
| UL, USA/Canada (EMC data) | UL 508 Listed |
| DNV GL-Humidity (EMC data) | B |
| DNV GL-Enclosure (EMC data) | Required protection according to the Rules shall be provided upon installation on board |
| DNV GL-Vibration (EMC data) | A |
| Screw thread (Power supply) | M3 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Conformance (Connection data) | CE-compliant |
| DNV GL-Temperature (EMC data) | B |
| Electrical isolation (EMC data) | Reinforced insulation in accordance with IEC 61010-1 |
| Standards/regulations (General) | EN 61000-4-6 |
| Stripping length (Power supply) | 10 mm |
| Connection method (Power supply) | Screw connection |
| Noise emission (Connection data) | EN 61000-6-4 |
| Noise immunity (Connection data) | EN 61000-6-2 When being exposed to interference, there may be minimal deviations. |
| Standards/regulations (EMC data) | EN 61000-4-6 |
| Status display (Connection data) | Yellow LED (switching output) |
| UL, USA/Canada (Connection data) | UL 508 Listed |
| No. of channels (Connection data) | 1 |
| Housing material (Connection data) | PBT |
| Mounting position (Connection data) | any |
| Weight per Piece (excluding packing) | 106.200 g |
| Degree of pollution (Connection data) | 2 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Electrical isolation (Connection data) | Reinforced insulation in accordance with IEC 61010-1 |
| Overvoltage category (Connection data) | II |
| Power consumption (Ambient conditions) | 450 mW (9.6 V DC) |
| Assembly instructions (Connection data) | The T connector can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715. |
| Electromagnetic compatibility (EMC data) | Conformance with EMC directive |
| Supply voltage range (Ambient conditions) | 9.6 V DC ... 30 V DC (The DIN rail bus connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, Order No. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715)) |
| Rated insulation voltage (Connection data) | 300 V (effective) |
| Nominal supply voltage (Ambient conditions) | 24 V DC |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 70 °C |
| Utilization restriction (Key Commercial Data) | 1 |
| Certificate of classification (Connection data) | DNV GL TAA000021E |
| Electromagnetic compatibility (Connection data) | Conformance with EMC directive |
| Typical current consumption (Ambient conditions) | 18 mA (24 V DC) |
| Test voltage, input/output/supply (Connection data) | 3 kV (50 Hz, 1 min.) |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Conductor cross section flexible max. (Power supply) | 1.5 mm² |
| Conductor cross section flexible min. (Power supply) | 0.2 mm² |
| Max. AWG conductor cross section, flexible (Power supply) | 12 |
| Min. AWG conductor cross section, flexible (Power supply) | 24 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (EMC data) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (EMC data) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (EMC data) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Connection data) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Connection data) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Connection data) | HL 1 - HL 2 |
| Single conductor/terminal point, solid, with ferrule, max. (Power supply) | 1.50 mm² |
| Single conductor/terminal point, solid, with ferrule, min. (Power supply) | 0.20 mm² |
| Single conductor/terminal point, solid, without ferrule, max. (Power supply) | 2.50 mm² |
| Single conductor/terminal point, solid, without ferrule, min. (Power supply) | 0.20 mm² |
Product Description
Configurable NAMUR separation amplifier with plug-in connection technology for proximity initiators, potential-free contacts and resistively connected switching contacts. 2 transistor outputs, configu
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
