In Stock Hot Product
MINI-3

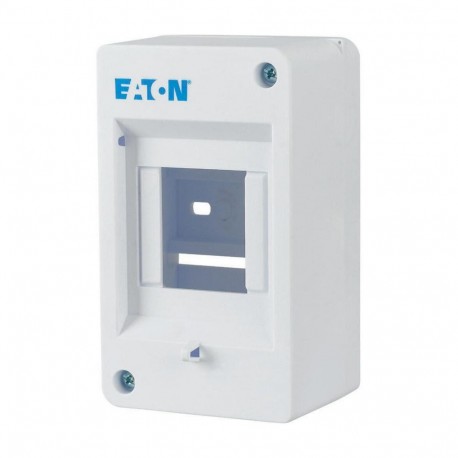

MINI-3 177067 Y7-177067 EATON ELECTRIC MINI-3 Mini compact distribution board, 1-row 3 SU, IP20
$0.00USD
3638 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):66 mm
Width (EF000008):82 mm
Colour (EF000007):White
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 66 mm |
| Width (EF000008) | 82 mm |
| Colour (EF000007) | White |
| Height (EF000040) | 140 mm |
| DIN-rail (EF001134) | Yes |
| With lock (EF006306) | No |
| RAL-number (EF000116) | 9003 |
| Cover model (EF009212) | With notch |
| EMC-version (EF001062) | Yes |
| Inner depth (EF001131) | 60 mm |
| Type of door (EF004464) | Other |
| Built-in depth (EF000218) | 70 mm |
| Built-in width (EF000846) | 0 mm |
| Number of rows (EF000266) | 1 |
| Built-in height (EF000332) | 0 mm |
| Mounting method (EF000003) | Surface mounted |
| Type of closure (EF004462) | Other |
| Housing material (EF001596) | Plastic |
| Type of covering (EF000339) | None |
| Extension possible (EF001088) | No |
| Signal passing door (EF015941) | No |
| With mounting plate (EF000118) | No |
| Neutral terminal block (EF015777) | No |
| Transparent cover/door (EF006244) | No |
| Earthing terminal block (EF015776) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Width in number of modular spacings (EF002950) | 3 |
Product Description
MINI-3
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
