MGRP081908GE

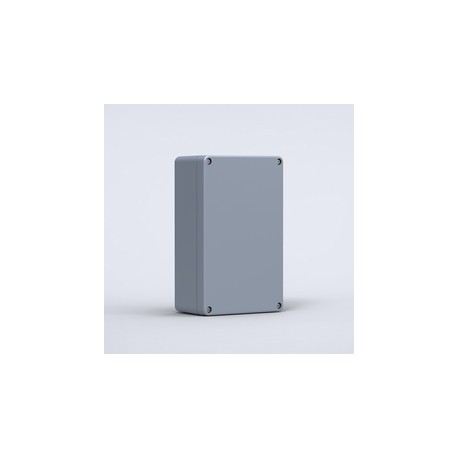

MGRP081908GE ELDON Terminal box, 75x190x75 MGRP081908GE
$0.00USD
4774 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):75.00 mm
Width (EF000008):190.00 mm
Colour (EF000007):
Supplier Information
ELDON
Products: 4827
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 75.00 mm |
| Width (EF000008) | 190.00 mm |
| Colour (EF000007) | |
| Height (EF000040) | 75.00 mm |
| Benefit: (Features) | Customers can receive terminal boxes with a short delivery time, that match their size requirements which can be installed in both indoor and outdoor environments due to the terminal box's excellent resistance to corrosion. This will also remove any extra costs due to oversizing. Component failure and unnecessary downtime is avoided as water and dust are prevented from entering the terminal box. |
| Feature: (Features) | Polyester terminal box, available in a wide range of sizes, with a high IP 66, 67 protection degree. |
| With lock (EF006306) | false |
| Advantage: (Features) | Customers can choose terminal boxes that meet their size requirements, off the shelf. The installed components inside the terminal box will be safe and secure due to the high protection degree. |
| RAL-number (EF000116) | 7.00 |
| Cover model (EF009212) | Closed |
| Inner depth (EF001131) | None mm |
| Note: (Technical data) | Mounting plate, GMP, and hinges, HHI, are available separately. |
| Type of door (EF004464) | None |
| Finish: (Technical data) | RAL 7000. |
| Gasket: (Technical data) | Standard supply fitted with a polyurethane gasket. Silicone, neoprene and EPDM gaskets are available on request. |
| Built-in depth (EF000218) | None mm |
| Number of rows (EF000266) | 0.00 |
| Delivery: (Technical data) | Body, cover and cover screws. Cover screws made of stainless steel. |
| Impact strength (EF004293) | IK07 |
| Material: (Technical data) | Glass fibre reinforced polyester. |
| Mounting method (EF000003) | Surface mounted |
| Approvals: (Technical data) | CE, GOST. For cULus_UL Listed approvals, please contact our sales department. |
| Housing material (EF001596) | Plastic |
| Type of covering (EF000339) | Cover |
| Circuit integrity (EF001613) | None |
| Number of modules (EF004427) | 0.00 |
| Protection: (Technical data) | IP 66, 67 IK 08, 07 for MGRP08080xGE. |
| Description: (Technical data) | Polyester box. Suitable for outdoor use, UV-resistant according to UL746 C. |
| Extension possible (EF001088) | false |
| Surface protection (EF000139) | |
| Flammability: (Technical data) | UL94 V-0. |
| With mounting plate (EF000118) | false |
| Nominal current (In) (EF008873) | None A |
| Transparent cover/door (EF006244) | false |
| Number of conduit inlets (EF000437) | 0.00 |
| Suitable for outdoor use (EF003532) | true |
| Degree of protection (IP) (EF005474) | IP67 |
| Degree of protection (NEMA) (EF011959) | |
| Temperature resistance: (Technical data) | -40 °C to +100 °C with the standard polyurethane gasket; -60 °C to +130 °C with the silicone gasket; -35 °C to +100 °C with the EPDM gasket; -30 °C to +80 °C with the neoprene gasket. |
| Cover with overpressure release (EF015940) | |
| Material plate thickness cabinet (EF009170) | None mm |
| Suitable for lightning protection (EF007800) | false |
| Material plate thickness door/cover (EF009171) | None mm |
| Width in number of modular spacings (EF002950) | |
| Number of openings for flange plates (EF009554) | 0.00 |
| Protection class according to IEC 61140 (EF000004) | II |
Product Description
Box for terminals, 75x190x75, without MARKER, polyester, IP66
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Description:
