MFKDSP/ 5-5,08 GY

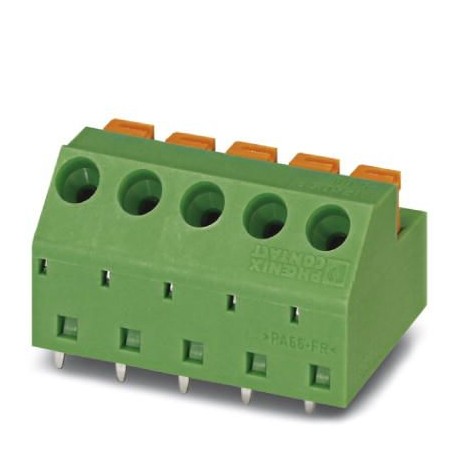

MFKDSP/ 5-5,08 GY 1701126 PHOENIX CONTACT PCB terminal block
$0.00USD
4911 in stock
Key Specifications
GTIN:4046356514835
Orderkey:1701126
Packing unit:1
(Connection data):CSA
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356514835 |
| Orderkey | 1701126 |
| Packing unit | 1 |
| (Connection data) | CSA |
| Custom tariff number | 85369010 |
| Pitch (Key Commercial Data) | 5.08 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 12.92 mm |
| Stripping length (Dimensions) | 10 mm |
| Range of articles (Dimensions) | MFKDSP |
| Nominal current IN (Dimensions) | 12 A |
| Solder pin surface (Dimensions) | |
| Number of positions (Dimensions) | 5 |
| Dimension a (Key Commercial Data) | 20.32 mm |
| Rated voltage (II/2) (Dimensions) | 630 V |
| Width [ w ] (Key Commercial Data) | 25.4 mm |
| Height [ h ] (Key Commercial Data) | 16.22 mm |
| Length [ l ] (Key Commercial Data) | 16.2 mm |
| Nominal cross section (Dimensions) | 1 mm² |
| Rated voltage (III/2) (Dimensions) | 320 V |
| Rated voltage (III/3) (Dimensions) | 250 V |
| Hole diameter (Key Commercial Data) | 1.3 mm |
| Solder pin [P] (Key Commercial Data) | 3.3 mm |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Rated surge voltage (II/2) (Dimensions) | 4 kV |
| Rated surge voltage (III/2) (Dimensions) | 4 kV |
| Rated surge voltage (III/3) (Dimensions) | 4 kV |
| Conductor cross section AWG max. (General) | 16 |
| Conductor cross section AWG min. (General) | 24 |
| Connection in acc. with standard (Dimensions) | EN-VDE |
| Connection in acc. with standard (Connection data) | EN-VDE |
Product Description
Terminal block for printed circuit board, nominal current: 12 A, nominal voltage (III/2): 320 V, nominal cross-section: 1 mm², number of potentials: 5, number of rows: 1, number of poles per row: 5, a
