In Stock Hot Product
MFDHTA390E

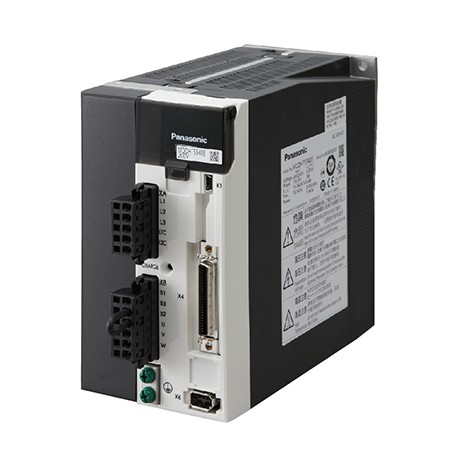

MFDHTA390E PANASONIC Servo drive MINAS A5E series, position control via pulse input, without analog input, 3..
$0.00USD
4156 in stock
Key Specifications
Item:Specifications
Type:Position control type
Frame:F-Frame
Series:A5E series
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Type | Position control type |
| Frame | F-Frame |
| Series | A5E series |
| Details | A5E seriesPosition control typewithout the safety function |
| Product | Servo Driver |
| Features | Servo motor that bring out potential of the machine. |
| Mass (kg) | 4.8 |
| Environment | For more details, please refer to the instruction manual. |
| Family Name | MINAS A5 |
| Part Number | MFDHTA390E |
| Product name | MINAS A5 Family Servo Driver |
| Control method | Position control |
| Supply voltage | 3-phase 200 V |
| Safety Function | without the safety function |
| Frequency response | 2.3 kHz |
| Dimensions (D) (Unit: mm) | 214 |
| Dimensions (H) (Unit: mm) | 220 |
| Dimensions (W) (Unit: mm) | 130 |
| I/F Classification of type | Analog/Pulse |
| Current detector current rating | 90A |
| Power device Max. current rating | 100A |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
