MFD-TA17

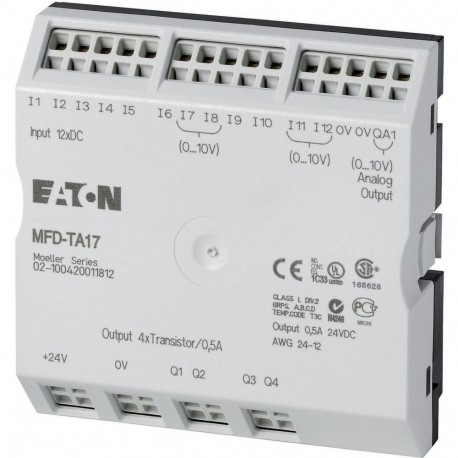

MFD-TA17 265256 0004519707 EATON ELECTRIC I/O module, 24 V DC, for MFD-CP8/CP10, 12DI(4AI), 4DO-Trans, 1AO
$0.00USD
3344 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):44 mm
Width (EF000008):88 mm
Height (EF000040):90 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 44 mm |
| Width (EF000008) | 88 mm |
| Height (EF000040) | 90 mm |
| Redundancy (EF003156) | No |
| Output current (EF003202) | 0.5 A |
| Supply voltage DC (EF007534) | 20.4 V |
| Type of digital output (EF003601) | Transistor |
| Type of output voltage (EF008222) | DC |
| Supply voltage AC 50 Hz (EF007532) | 0 V |
| Supply voltage AC 60 Hz (EF007533) | 0 V |
| Number of digital inputs (EF001992) | 12 |
| Input current at signal 1 (EF001428) | 3.3 mA |
| Number of digital outputs (EF001993) | 4 |
| Permitted voltage at input (EF007554) | 20.4 V |
| SIL according to IEC 61508 (EF009889) | None |
| Digital inputs configurable (EF008516) | No |
| Permitted voltage at output (EF007553) | 20.4 V |
| Time delay at signal change (EF002382) | 0.1 ms |
| Type of electric connection (EF003961) | Spring clamp connection |
| Digital outputs configurable (EF008520) | No |
| Suitable for safety functions (EF001597) | No |
| Voltage type (supply voltage) (EF002991) | DC |
| Type of voltage (input voltage) (EF003033) | DC |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Short-circuit protection, outputs available (EF003203) | Yes |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
Product Description
MFD I/O module; 24 V DC; 12ED(4EA), 4SD, 1SA; For MFD-CP8/CP10
