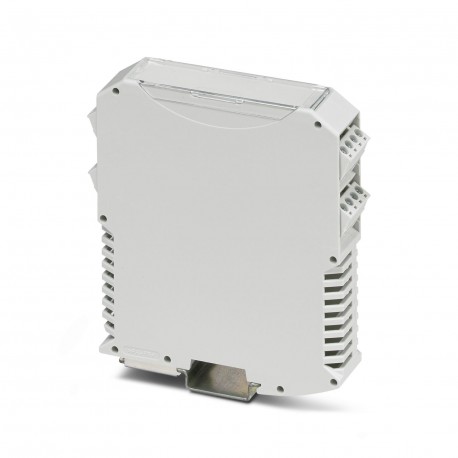

ME MAX 22,5 2-2 DEV-KIT KMGY
ME MAX 22,5 2-2 DEV-KIT KMGY 2202524 PHOENIX CONTACT Electronic housing
$0.00USD
4666 in stock
Key Specifications
Type:Set consisting of upper housing part and connection technology
Depth:113.65 mm
Width:22.6 mm
Height:99 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Set consisting of upper housing part and connection technology |
| Depth | 113.65 mm |
| Width | 22.6 mm |
| Height | 99 mm |
| Housing type | DIN rail housing |
| Product type | Stackable housing set |
| Assembly note | Refer to the data sheet for the range in the download area. |
| Mounting type | DIN rail mounting |
| PCB thickness | 1.4 mm ... 1.8 mm |
| Housing series | ME-MAX |
| Number of rows | 2 |
| Product family | ME MAX.. 2-2 |
| Recommendation | Material of contact pads for bus connector, galvanic gold (hard gold) |
| Color (Housing) | light gray (RAL 7035) |
| Article revision | 04 |
| Housing material | Polyamide |
| Type of PCB mount | Latching |
| Dimensional drawing | |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
| Max. IP code to attain | IP20 |
| Surface characteristics | untreated |
| Max. number of positions | 16 (pitch: 5 mm) |
| CTI according to IEC 60112 | 600 |
| Ventilation openings present | yes |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Depth from top edge of DIN rail | 107 mm |
| Flammability rating according to UL 94 | V0 |
Product Description
DEV-KIT ME MAX: includes 1 ME MAX 22.5 2-2 housing and plug-in connection technology (4x MSTBO with 4x MSTBT), supplied in individual pieces
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
