ME MAX 22,5 2-2 BUGY

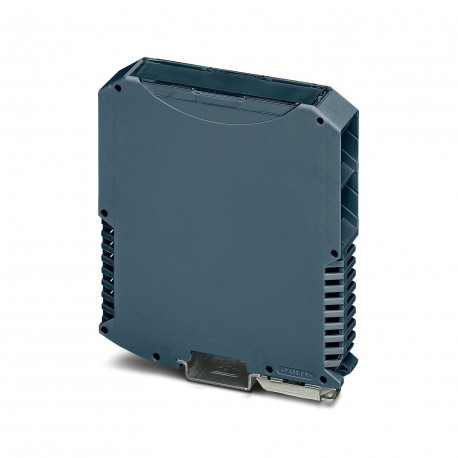

ME MAX 22,5 2-2 BUGY 2201584 PHOENIX CONTACT Electronic housing
$0.00USD
3108 in stock
Key Specifications
:16 (pitch: 5 mm)
Type:Complete housing with metal foot catch, tall design
Depth:113.65 mm
Force:20 N
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 16 (pitch: 5 mm) | |
| Type | Complete housing with metal foot catch, tall design |
| Depth | 113.65 mm |
| Force | 20 N |
| Width | 22.6 mm |
| Height | 99 mm |
| Amplitude | 0.15 mm (10 Hz ... 58.1 Hz) |
| Frequency | 10 - 150 - 10 Hz |
| Pulse shape | Half-sine |
| Sweep speed | 1 octave/min |
| Temperature | 850 °C |
| Acceleration | 2g (58.1 Hz ... 150 Hz) |
| Housing type | DIN rail housing |
| Product type | Complete housing |
| Assembly note | Refer to the data sheet for the range in the download area. |
| Mounting type | DIN rail mounting |
| PCB thickness | 1.4 mm ... 1.8 mm |
| Specification | IEC 60068-2-6:2007-12 |
| Test duration | 1 h |
| Height of fall | 50 cm |
| Housing series | ME-MAX |
| Number of rows | 2 |
| Product family | ME MAX.. 2-2 |
| Recommendation | Material of contact pads for bus connector, galvanic gold (hard gold) |
| Shock duration | 11 ms |
| Color (Housing) | blue grey (RAL 7031) |
| Test directions | X-, Y- and Z-axis |
| Article revision | 04 |
| Housing material | Polyamide |
| Reduction factor | 1 |
| Time of exposure | 30 s |
| Mounting position | vertical |
| Power dissipation | 5.7 W |
| Type of PCB mount | Latching |
| Type of packaging | packed in cardboard |
| Ambient temperature | 20 °C |
| Dimensional drawing | |
| Outer packaging type | Carton |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
| Number of PCB holders | 1 |
| Max. IP code to attain | IP20 |
| Test duration per axis | 2.5 h |
| Surface characteristics | untreated |
| Max. number of positions | 20 (pitch: 3.5 mm) |
| CTI according to IEC 60112 | 600 |
| Ventilation openings present | yes |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Number of shocks per direction | 3 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Depth from top edge of DIN rail | 107 mm |
| Relative humidity (storage/transport) | 80 % |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
Product Description
Rail housing, Full housing with metal pin, high design, with ventilation slits, width: 22.6 mm, height: 99 mm, depth: 113.65 mm, color: bluish gray (7031), cross bridge: Rail bus connector (optional),
