ME MAX 22,5 2-2 BU

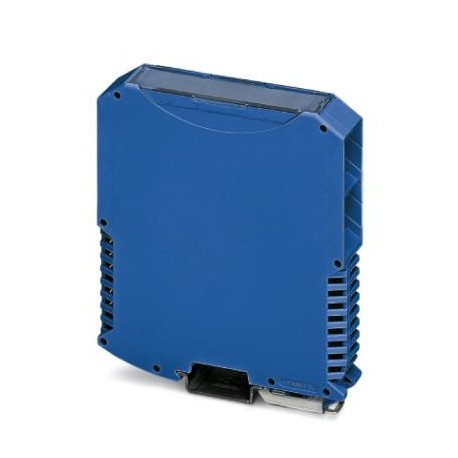

ME MAX 22,5 2-2 BU 2890315 PHOENIX CONTACT Electronic housing
$0.00USD
4989 in stock
Key Specifications
GTIN:4046356079464
Orderkey:2890315
Packing unit:10 pc
Country of origin:DE (Germany)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356079464 |
| Orderkey | 2890315 |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85389099 |
| Specification (Shock) | IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08 |
| Minimum order quantity | 100 pc |
| Type (Key Commercial Data) | Tall design |
| Reduction factor (PCB data) | 1 |
| (Standards and regulations) | No hazardous substances above threshold values |
| Mounting position (PCB data) | vertical |
| Power dissipation (PCB data) | 5.7 W |
| Pulse shape (Vibration test) | Half-sine |
| Acceleration (Vibration test) | 15g |
| Depth [ d ] (Item properties) | 114.5 mm |
| Housing material (Dimensions) | Polyamide |
| Width [ w ] (Item properties) | 22.5 mm |
| Ambient temperature (PCB data) | 20 °C |
| Height [ h ] (Item properties) | 99 mm |
| Specification (Vibration test) | IEC 60068-2-27:2008-02 |
| Order No. (Key Commercial Data) | 2890315 |
| Shock duration (Vibration test) | 11 ms |
| Test directions (Vibration test) | X-, Y- and Z-axis (pos. and neg.) |
| Housing type (Key Commercial Data) | Complete housing |
| PCB thickness (Ambient conditions) | 1.4 mm ... 1.8 mm |
| Mounting type (Key Commercial Data) | DIN rail mounting |
| Weight per Piece (excluding packing) | 57.930 g |
| China RoHS (Standards and regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Mounting position (Ambient conditions) | Vertical (horizontal DIN rail) |
| Number of levels (Key Commercial Data) | 2 |
| Type of PCB mount (Ambient conditions) | Latching |
| Type of packaging (General information) | packed in cardboard |
| Pieces per package (General information) | 10 |
| Number of PCB holders (Ambient conditions) | 1 |
| Outer packaging type (General information) | Carton |
| Max. IP code to attain (Key Commercial Data) | IP20 |
| Result, degree of protection, IP code (Shock) | IP20 |
| Ambient temperature (assembly) (Material data) | -5 °C ... 100 °C |
| Ambient temperature (operation) (Material data) | -40 °C ... 105 °C (depending on power dissipation) |
| Amplitude (Mechanical strength/tumbling barrel) | 0.15 mm (10 - 58.1 Hz) |
| Brief article description (Key Commercial Data) | Electronic housing |
| Frequency (Mechanical strength/tumbling barrel) | 10 - 150 - 10 Hz |
| Number of shocks per direction (Vibration test) | 3 |
| Denomination packing units (General information) | Pcs. |
| Sweep speed (Mechanical strength/tumbling barrel) | 1 octave/min |
| Acceleration (Mechanical strength/tumbling barrel) | 2g (58.1 - 150 Hz) |
| Ventilation openings present (Key Commercial Data) | yes |
| Specification (Mechanical strength/tumbling barrel) | IEC 60068-2-6:2007-12 |
| Relative humidity (storage/transport) (Material data) | 80 % |
| Test directions (Mechanical strength/tumbling barrel) | X-, Y- and Z-axis |
| Ambient temperature (storage/transport) (Material data) | -40 °C ... 55 °C |
| Depth from top edge of DIN rail [ d ] (Item properties) | 107 mm |
| Connection in acc. with standard (Packaging information) | CUL |
| Note (Degrees of protection provided by housings (IP code)) | Refer to the data sheet for the range in the download area. |
| Specification (Power dissipation, single housing at 60 °C) | IEC 60998-1:2002-12 |
| Height of fall (Power dissipation, single housing at 60 °C) | 50 cm |
| Test duration per axis (Mechanical strength/tumbling barrel) | 2.5 h |
| Reduction factor (Power dissipation, single housing at 20 °C) | 0.91 |
| Reduction factor (Power dissipation, single housing at 30 °C) | 0.81 |
| Reduction factor (Power dissipation, single housing at 40 °C) | 0.7 |
| Reduction factor (Power dissipation, single housing at 50 °C) | 0.57 |
| Mounting position (Power dissipation, single housing at 20 °C) | vertical |
| Mounting position (Power dissipation, single housing at 30 °C) | vertical |
| Mounting position (Power dissipation, single housing at 40 °C) | vertical |
| Mounting position (Power dissipation, single housing at 50 °C) | vertical |
| Power dissipation (Power dissipation, single housing at 20 °C) | 5.2 W |
| Power dissipation (Power dissipation, single housing at 30 °C) | 4.6 W |
| Power dissipation (Power dissipation, single housing at 40 °C) | 4 W |
| Power dissipation (Power dissipation, single housing at 50 °C) | 2.25 W |
| Ambient temperature (Power dissipation, single housing at 20 °C) | 30 °C |
| Ambient temperature (Power dissipation, single housing at 30 °C) | 40 °C |
| Ambient temperature (Power dissipation, single housing at 40 °C) | 50 °C |
| Ambient temperature (Power dissipation, single housing at 50 °C) | 60 °C |
| Number of drop cycles (Power dissipation, single housing at 60 °C) | 10 |
| Type of note (Degrees of protection provided by housings (IP code)) | Assembly instruction: |
Product Description
Rail box, Full housing with metal pin, high design, with ventilation slits, width: 22.6 mm, height: 99 mm, depth: 113.65 mm, color: blue (5015), cross bridge: Bus connector for rail (optional), number
