ME 45 UTG BUGY

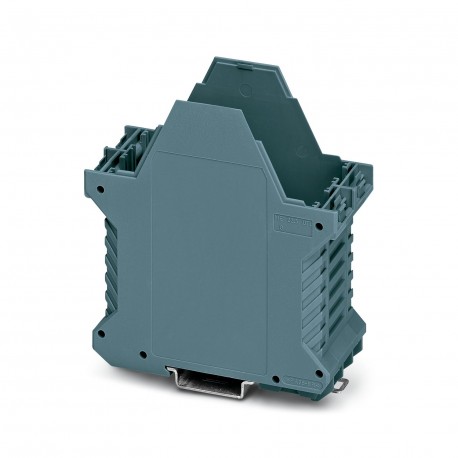

ME 45 UTG BUGY 2199278 PHOENIX CONTACT Mounting base housing
$0.00USD
3956 in stock
Key Specifications
Type:Lower housing parts without vents, housing cover necessary to complete the module
Color:blue grey (7031)
Depth:107.3 mm
Force:20 N
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Lower housing parts without vents, housing cover necessary to complete the module |
| Color | blue grey (7031) |
| Depth | 107.3 mm |
| Force | 20 N |
| Width | 45.2 mm |
| Height | 99 mm |
| Amplitude | 0.15 mm (10 Hz ... 58.1 Hz) |
| Frequency | 10 - 150 - 10 Hz |
| Pulse shape | Half-sine |
| Sweep speed | 1 octave/min |
| Temperature | 850 °C |
| Acceleration | 2g (58.1 Hz ... 150 Hz) |
| Housing type | DIN rail housing |
| Product type | Enclosure bottom part |
| Assembly note | Refer to the data sheet for the range in the download area. |
| Mounting type | DIN rail mounting |
| PCB thickness | 1.4 mm ... 1.8 mm |
| Specification | IEC 60068-2-6:2007-12 |
| Test duration | 1 h |
| Height of fall | 50 cm |
| Housing series | ME |
| Shock duration | 11 ms |
| Color (Housing) | blue grey (RAL 7031) |
| Test directions | X-, Y- and Z-axis |
| Article revision | 01 |
| Housing material | Polyamide |
| Reduction factor | 1 |
| Time of exposure | 30 s |
| Mounting position | vertical |
| Power dissipation | 7.6 W |
| Type of PCB mount | Insertion (optional latching by PCB stop) |
| Type of packaging | packed in cardboard |
| Ambient temperature | 20 °C |
| Dimensional drawing | |
| Outer packaging type | Carton |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
| Number of PCB holders | 2 |
| Max. IP code to attain | IP20 |
| Test duration per axis | 2.5 h |
| Surface characteristics | untreated |
| Max. number of positions | 0) |
| CTI according to IEC 60112 | 600 |
| Ventilation openings present | no |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Number of shocks per direction | 3 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Depth from top edge of DIN rail | 100.7 mm |
| Relative humidity (storage/transport) | 80 % |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Depth from top edge of DIN rail to support point on upper part | 68.5 mm |
Product Description
Rail box, Bottom of housing with metal pin, high design, no vent slits, width: 45.2 mm, height: 99 mm, depth: 107.3 mm, color: bluish gray (7031), cross bridge: without bus connector, number of poles
