In Stock Hot Product
ME 45 UT TBUS BU

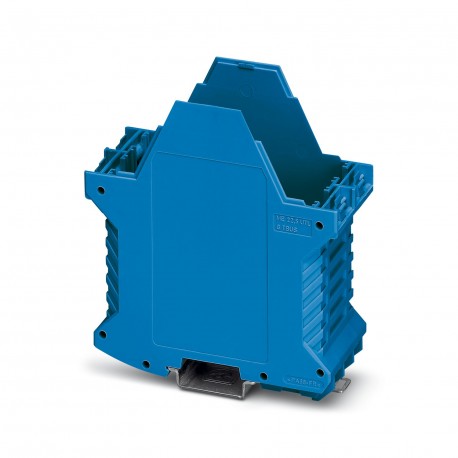

ME 45 UT TBUS BU 2713997 PHOENIX CONTACT Electronic housing
$0.00USD
4712 in stock
Key Specifications
GTIN:4017918914455
Note:Made to Order (non-returnable)
Orderkey:2713997
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918914455 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2713997 |
| Packing unit | 10 pc |
| (Dimensions) | 8 |
| Country of origin | DE (Germany) |
| Custom tariff number | 85472000 |
| Minimum order quantity | 10 pc |
| Depth (Ambient conditions) | 99 mm |
| Width (Ambient conditions) | 45 mm |
| Height (Ambient conditions) | 114.5 mm |
| Length (Ambient conditions) | 99 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Number of positions (Dimensions) | 32 |
| Color (RAL) (Key Commercial Data) | blue (5015) |
| Housing type (Key Commercial Data) | Component housing |
| Weight per Piece (excluding packing) | 47.320 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Housing material (Key Commercial Data) | PA 6.6 |
| Ambient temperature (assembly) (General) | -5 °C ... 100 °C |
| Ambient temperature (operation) (General) | -40 °C (depending on power dissipation) |
| Power dissipation without gap (Dimensions) | 8.2 W |
| Power dissipation with 20 mm gap (Dimensions) | 16.5 W |
| Ambient temperature (storage/transport) (General) | -40 °C ... 70 °C |
| Flammability rating according to UL 94 (Technical data) | V0 |
Product Description
Rail box, Bottom of housing with metal pin, high design, with ventilation slits, width: 45.2 mm, height: 99 mm, depth: 107.3 mm, color: blue (5015), cross bridge: Rail bus connector (optional), number
