In Stock Hot Product
ME 45 UT RD

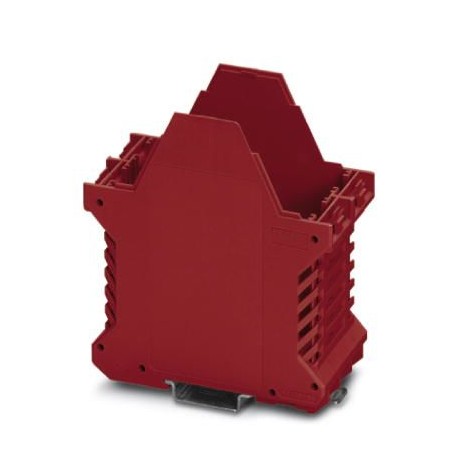

ME 45 UT RD 2709972 PHOENIX CONTACT Mounting base housing
$0.00USD
4983 in stock
Key Specifications
GTIN:4017918888398
Note:Made to Order (non-returnable)
Orderkey:2709972
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918888398 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2709972 |
| Packing unit | 10 pc |
| (Dimensions) | 8 |
| Country of origin | DE (Germany) |
| Custom tariff number | 85472000 |
| AWG/kcmil (Dimensions) | 30-12 |
| Minimum order quantity | 10 pc |
| Indicator1 (Dimensions) | CUL1 |
| Depth (Ambient conditions) | 99 mm |
| Width (Ambient conditions) | 45 mm |
| Height (Ambient conditions) | 114.5 mm |
| Length (Ambient conditions) | 99 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Nominal current IN (Dimensions) | 10 A |
| Nominal voltage UN (Dimensions) | 300 V |
| Number of positions (Dimensions) | 32 |
| Color (RAL) (Key Commercial Data) | red (3001) |
| Housing type (Key Commercial Data) | Component housing |
| Weight per Piece (excluding packing) | 64.120 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Housing material (Key Commercial Data) | Polyamide |
| Ambient temperature (assembly) (General) | -5 °C ... 100 °C |
| Ambient temperature (operation) (General) | -40 °C (depending on power dissipation) |
| Connection in acc. with standard (Dimensions) | CUL |
| Ambient temperature (storage/transport) (General) | -40 °C ... 70 °C |
| Connection in acc. with standard (Technical data) | CUL |
| Flammability rating according to UL 94 (Technical data) | V0 |
Product Description
Rail box, Bottom of housing with metal pin, high design, with ventilation slits, width: 45.2 mm, height: 99 mm, depth: 107.3 mm, color: red (3001), cross bridge: without bus connector, number of poles
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
