ME 22,5 OT-MKDSO GN

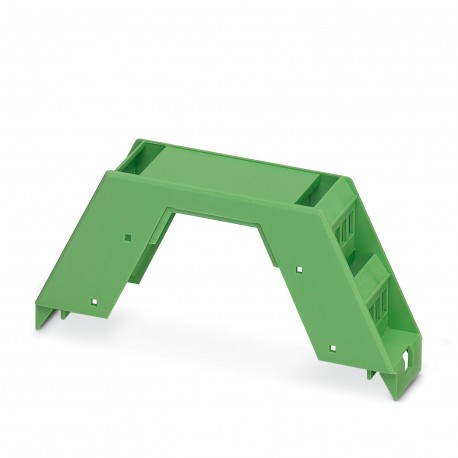

ME 22,5 OT-MKDSO GN 2907172 PHOENIX CONTACT Upper part of housing
$0.00USD
4386 in stock
Key Specifications
GTIN:4017918126667
Orderkey:2907172
Catalog page:Page 575 (CC-2009)
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918126667 |
| Orderkey | 2907172 |
| Catalog page | Page 575 (CC-2009) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85369010 |
| AWG/kcmil (Dimensions) | 30-12 |
| Minimum order quantity | 10 pc |
| Indicator1 (Dimensions) | CUL1 |
| Depth (Ambient conditions) | 99 mm |
| Width (Ambient conditions) | 22.5 mm |
| Height (Ambient conditions) | 38.5 mm |
| Length (Ambient conditions) | 99 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Nominal current IN (Dimensions) | 10 A |
| Nominal voltage UN (Dimensions) | 300 V |
| Number of positions (Dimensions) | 16 |
| Color (RAL) (Key Commercial Data) | green (6021) |
| Housing type (Key Commercial Data) | Component housing |
| Weight per Piece (excluding packing) | 8.890 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Housing material (Key Commercial Data) | Polyamide |
| Ambient temperature (operation) (General) | -40 °C ... 105 °C (depending on power dissipation) |
| Connection in acc. with standard (Dimensions) | CUL |
| Connection in acc. with standard (Technical data) | CUL |
| Flammability rating according to UL 94 (Technical data) | V0 |
Product Description
Rail housing, Top of the terminal block housing for printed circuit board with screw connection, width: 22.6 mm, height: 99 mm, depth: 45.85 mm, color: green (6021)
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
