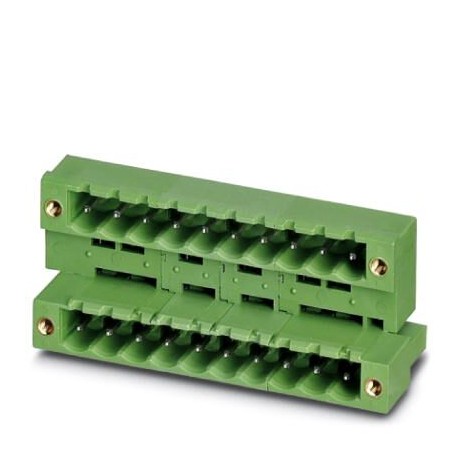

MDSTB 2,5/15-GF-5,08
MDSTB 2,5/15-GF-5,08 1811747 PHOENIX CONTACT PCB headers, nominal current: 10 A, rated voltage (III/2): 320 ..
$0.00USD
4620 in stock
Key Specifications
GTIN:4046356718950
Orderkey:1811747
(Drawings):
Packing unit:1
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356718950 |
| Orderkey | 1811747 |
| (Drawings) | |
| Packing unit | 1 |
| Pitch (Drawings) | 5.08 mm |
| UNSPSC 11 (ETIM) | 39121409 |
| Width (Drawings) | 88.9 mm |
| ETIM 3.0 (eCl@ss) | EC001121 |
| ETIM 4.0 (eCl@ss) | EC002637 |
| ETIM 5.0 (eCl@ss) | EC002637 |
| ETIM 6.0 (eCl@ss) | EC002637 |
| ETIM 7.0 (eCl@ss) | EC002637 |
| Height (Drawings) | 24 mm |
| Length (Drawings) | 22.1 mm |
| Color (Dimensions) | green |
| UNSPSC 13.2 (ETIM) | 39121409 |
| UNSPSC 18.0 (ETIM) | 39121409 |
| UNSPSC 19.0 (ETIM) | 39121409 |
| UNSPSC 20.0 (ETIM) | 39121409 |
| UNSPSC 21.0 (ETIM) | 39121409 |
| UNSPSC 6.01 (ETIM) | 30211810 |
| UNSPSC 12.01 (ETIM) | 39121409 |
| Custom tariff number | 85366930 |
| UNSPSC 7.0901 (ETIM) | 39121409 |
| Dimension a (Drawings) | 71.12 mm |
| Width [ w ] (Drawings) | 88.9 mm |
| Height [ h ] (Drawings) | 27.2 mm |
| Length [ l ] (Drawings) | 22.1 mm |
| Pin dimensions (Drawings) | 1 x 1 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| eCl@ss 4.0 (Classifications) | 27260700 |
| eCl@ss 4.1 (Classifications) | 27260700 |
| eCl@ss 5.0 (Classifications) | 27260700 |
| eCl@ss 5.1 (Classifications) | 27260700 |
| eCl@ss 6.0 (Classifications) | 27260700 |
| eCl@ss 7.0 (Classifications) | 27440402 |
| eCl@ss 8.0 (Classifications) | 27440402 |
| eCl@ss 9.0 (Classifications) | 27440402 |
| Range of articles (Dimensions) | MDSTB 2,5/..-GF |
| Nominal current IN (Dimensions) | 10 A |
| Number of positions (Dimensions) | 15 |
| Rated voltage (III/3) (Dimensions) | 250 V |
| Length of the solder pin (Drawings) | 3.2 mm |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 years |
| Insulating material group (Dimensions) | IIIa |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Connection in acc. with standard (General) | CUL |
| DiagramType: FKCS 2,5/...-STF-5,08 with MDSTB 2,5/...-GF-5,08 (Drawings) | |
| DiagramType: MSTB 2,5/...-STF-5,08 with MDSTB 2,5/...-GF-5,08 (Drawings) | |
| DiagramType: MSTBT 2,5/...-STF-5,08 with MDSTB 2,5/...-GF-5,08 (Drawings) | |
| DiagramType: FKCV(W/R) 2,5/...-STF-5,08 with MDSTB 2,5/...-GF-5,08 (Drawings) |
Product Description
Printed circuit board base case, nominal section: 2.5 mm², color: green, nominal current: 10 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 30, numb
