In Stock Hot Product
MDI63A 367

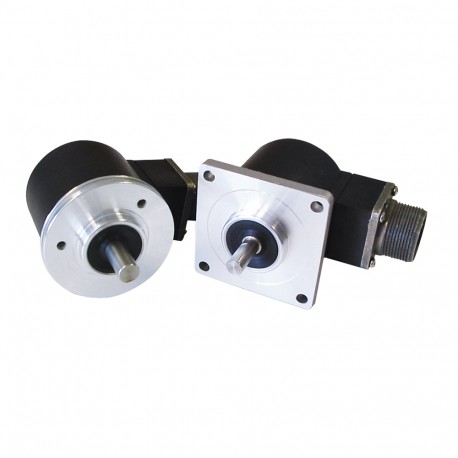

MDI63A 367 MDI63A1500Z5/30L10XXPR MICRO DETECTORS Incremental Encoder Solid Shaft 63mm, Flange A, Resolution..
$0.00USD
3641 in stock
Key Specifications
Weight:350 g (12,35 oz)
bearings:2 ball bearings
Resolution:da 100 a 2500 ppr
Output type:push-pull / line driver
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 350 g (12,35 oz) |
| bearings | 2 ball bearings |
| Resolution | da 100 a 2500 ppr |
| Output type | push-pull / line driver |
| bearings life | 109 revolutions |
| Shaft diameter | ø 9,52 (3/8”) / 10 mm |
| max shaft load | 200 N |
| shaft material | 1.4305 / AISI 303 stainless steel |
| Housing Material | PA66 glass fiber reinforced |
| max load current | 20 mA / channel |
| EMC compatibility | IEC 61000-6-2 IEC 61000-6-4 |
| Operating Voltage | 5/30 = 4,5 ... 30 V DC (reverse polarity protection) |
| moment of inertia | 1,5 x 10-6 kgm2 |
| counting direction | A leads B clockwise (shaft view) |
| max rotation speed | 6000 rpm (IP54) 3000 rpm / 70° C - 2000 rpm / 85° C (IP66) |
| Storage temperature | -25° ... +70°C (-13° ... +158°F) |
| Degree of protection | X = IP 54 (IEC 60529) S = IP 66 (IEC 60529) |
| max output frequency | 220 kHz |
| Operating temperature | -25° ... +85°C (-13° ... +185°F) |
| Shocks and vibrations | 10 G, 10 ... 2000 Hz (IEC 60068-2-6) |
| No-Load supply current | 800 mW |
| starting torque at 20°c | < 0,02 Nm (IP 54) < 0,06 Nm (IP 66) |
Product Description
MDI63A1500Z5/30L10XXPR - Solid Shaft 63mm, Flange A, Res. 1500 ppm, With Zero Pulse, Line Driver, Shaft 10mm, IP54, Radial Cable 1,5 mt Exit
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
