In Stock Hot Product
MDI58B 1012

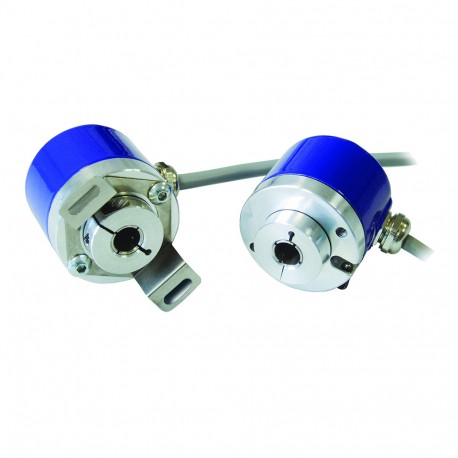

MDI58B 1012 MDI58B900S5/30P6XXMR.162.162 MICRO DETECTORS Incremental Encoder Solid Shaft 58mm, Flange B, Res..
$0.00USD
4652 in stock
Key Specifications
Weight:30g
Mounting:Shielded
Approvals:CEUL
Dimensions:M4 x 0,5 / L = 22mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 30g |
| Mounting | Shielded |
| Approvals | CEUL |
| Dimensions | M4 x 0,5 / L = 22mm |
| Hysteresis | 1 … 20% |
| Connections | 2m PUR Cable |
| Output type | NPN |
| Load current | ≤ 100mA |
| LED indicators | Yellow LED output state |
| Leakage current | ≤ 10μA |
| Output Function | NO |
| Repeat Accuracy | 5% (UB 24V Ta=23°C ±5°C) |
| Standard target | 4x4mm FE360 |
| Housing Material | AISI303 Stainless Steel |
| Correction Factor | copper: 0,23 ± 10% / aluminium: 0,26 ± 10% / brass: 0,31 ± 10% / stainless steel: 0,52 ± 10% |
| EMC compatibility | IEC 60947-5-2 |
| Operating Voltage | 10 - 30Vdc |
| Tightening torque | 1,5Nm |
| Max ripple content | ≤10% |
| Operanting distance | 0…0,48mm |
| Output voltage drop | ≤ 1,5V @100mA |
| Switching frequency | 3kHz |
| Thermal drift of Sr | < 10% |
| Active Head Material | PBT |
| Degree of protection | IP 67 (EN60529) |
| Supplied Accessories | 2 nuts M4x0,5 |
| Operating temperature | -25°C…+70°C |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| No-Load supply current | ≤ 10mA |
| Nominal sensing distance | 0,6mm |
| Short-circuit protection | Yes (auto-reset) |
| Reverse Polarity Protection | Yes |
| Time delay before availability | ≤ 50ms |
| Protection against inductive loads | Yes |
Product Description
MDI58B900S5/30P6XXMR.162 - Solid Shaft 58mm, Flange B, Res. 900 ppm, Without Zero Pulse, Push-Pull, Shaft 6mm, IP54, Radial MIL Connector Exit
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
