MDI38F 293

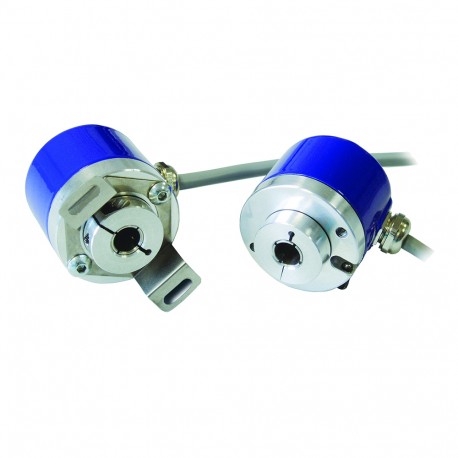

MDI38F 293 MDI38F512Z5/30P8SXPR MICRO DETECTORS Incremental Encoder Hollow Shaft 38mm, Flange F, Resolution ..
$0.00USD
4734 in stock
Key Specifications
Weight:150 g
bearings:2 ball bearings
Resolution:da 100 a 2500 ppr
Output type:push-pull / line driver
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 150 g |
| bearings | 2 ball bearings |
| Resolution | da 100 a 2500 ppr |
| Output type | push-pull / line driver |
| bearings life | 109 revolutions |
| Shaft diameter | ø 6* / 8* / 10 mm |
| max shaft load | 5 N assiale / radiale |
| shaft material | 1.4305 / AISI 303 stainless steel |
| Housing Material | PA66 glass fiber reinforced |
| max load current | 20 mA / channel |
| EMC compatibility | IEC 61000-6-2 IEC 61000-6-4 |
| Operating Voltage | 5/30 = 4,5 ... 30 V DC (reverse polarity protection) |
| moment of inertia | 0,8 x 10-6 kgm2 |
| counting direction | A leads B clockwise (shaft view) |
| max rotation speed | 3000 rpm |
| Storage temperature | -25° ... +70°C |
| Degree of protection | IP 64 (IEC 60529) IP 65 (IEC 60529) |
| max output frequency | 220 kHz |
| Operating temperature | -20° ... +70°C |
| Shocks and vibrations | 10 G, 10 ... 2000 Hz (IEC 60068-2-6) |
| No-Load supply current | 800 mW |
| starting torque at 20°c | < 0,01 Nm (IP 64) < 0,06 Nm (IP 65) |
Product Description
MDI38F512Z5/30P8SXPR - Hollow Shaft 38mm, Flange F, Res. 512 ppm, With Zero Pulse, Push-Pull, Shaft 8mm, IP66, Radial Cable 0,5 mt Exit
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
