In Stock Hot Product

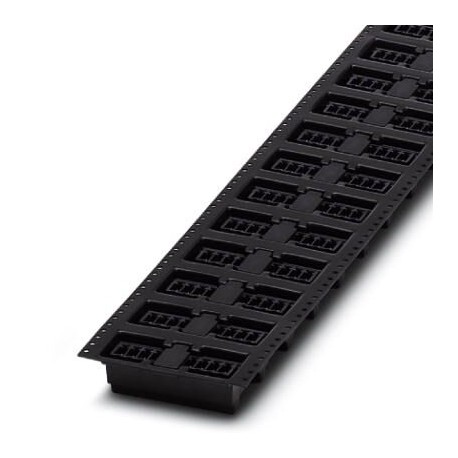

MCV 1,5/ 8-G-3,5 P14 THRR44C
MCV 1,5/ 8-G-3,5 P14 THRR44C 1805229 PHOENIX CONTACT PCB headers, nominal current: 8 A, rated voltage (III/2..
$0.00USD
3329 in stock
Key Specifications
GTIN:4046356671620
Orderkey:1805229
Packing unit:1
UNSPSC 11 (ETIM):39121409
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356671620 |
| Orderkey | 1805229 |
| Packing unit | 1 |
| UNSPSC 11 (ETIM) | 39121409 |
| ETIM 3.0 (eCl@ss) | EC001121 |
| ETIM 4.0 (eCl@ss) | EC002637 |
| ETIM 5.0 (eCl@ss) | EC002637 |
| ETIM 6.0 (eCl@ss) | EC002637 |
| ETIM 7.0 (eCl@ss) | EC002637 |
| Color (Dimensions) | black |
| UNSPSC 13.2 (ETIM) | 39121409 |
| UNSPSC 6.01 (ETIM) | 30211810 |
| UNSPSC 12.01 (ETIM) | 39121409 |
| Custom tariff number | 85366930 |
| UNSPSC 7.0901 (ETIM) | 39121409 |
| Pitch (Key Commercial Data) | 3.5 mm |
| Width (Key Commercial Data) | 29.4 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 9.2 mm |
| Length (Key Commercial Data) | 6.9 mm |
| eCl@ss 4.0 (Classifications) | 272607xx |
| eCl@ss 4.1 (Classifications) | 27260701 |
| eCl@ss 5.0 (Classifications) | 27260701 |
| eCl@ss 5.1 (Classifications) | 27260700 |
| eCl@ss 6.0 (Classifications) | 27260700 |
| eCl@ss 7.0 (Classifications) | 27440402 |
| eCl@ss 8.0 (Classifications) | 27440402 |
| eCl@ss 9.0 (Classifications) | 27440402 |
| Range of articles (Dimensions) | MCV 1,5/..-G-THR |
| Nominal current IN (Dimensions) | 8 A |
| Insulating material (Dimensions) | LCP |
| Number of positions (Dimensions) | 8 |
| Dimension a (Key Commercial Data) | 24.5 mm |
| Maximum load current (Dimensions) | 8 A |
| Rated voltage (II/2) (Dimensions) | 250 V |
| Width [ w ] (Key Commercial Data) | 29.4 mm |
| Height [ h ] (Key Commercial Data) | 8.3 mm |
| Length [ l ] (Key Commercial Data) | 6.9 mm |
| Rated voltage (III/2) (Dimensions) | 160 V |
| Rated voltage (III/3) (Dimensions) | 160 V |
| Pin dimensions (Key Commercial Data) | 0.8 x 0.8 mm |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Insulating material group (Dimensions) | IIIa |
| Rated surge voltage (II/2) (Dimensions) | 2.5 kV |
| Rated surge voltage (III/2) (Dimensions) | 2.5 kV |
| Rated surge voltage (III/3) (Dimensions) | 2.5 kV |
| Connection in acc. with standard (General) | EN-VDE |
| Connection in acc. with standard (Dimensions) | EN-VDE |
| Length of the solder pin (Key Commercial Data) | 1.4 mm |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Dimensions) | V0 |
Product Description
Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, dimensioning voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 8
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 8, pitch: 3.5 mm, color: black, contact surface: Tin, mounting: THR soldering, User information and design recommendations for through hole reflow technology can be found under “Downloads”
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
