MCS11-U

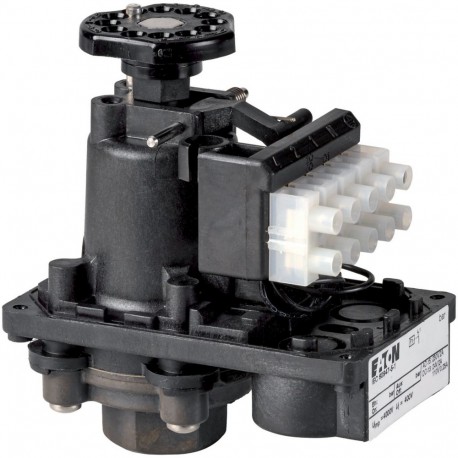

MCS11-U 090900 EATON ELECTRIC Pressure switch, 1W, 15bar
$0.00USD
3879 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):96 mm
Width (EF000008):60 mm
Height (EF000040):111 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 96 mm |
| Width (EF000008) | 60 mm |
| Height (EF000040) | 111 mm |
| Diameter (EF000551) | 0 mm |
| Connection (EF000443) | Inner thread gas cylindrical (BSPP) |
| End setting (EF001411) | 0 hPa |
| Thread size (EF022694) | 1/2 inch |
| With display (EF000458) | No |
| Explosion-proof (EF004663) | No |
| Initial setting (EF001410) | 0 hPa |
| Bursting pressure (EF007080) | 90 bar |
| Engaging pressure (EF007124) | 0 bar |
| Suitable as guard (EF007239) | Yes |
| Electronic version (EF007132) | No |
| Max. test pressure (EF007365) | 32 bar |
| Medium temperature (EF007369) | 25 °C |
| Suitable as limiter (EF007228) | No |
| Switch off pressure (EF007008) | 0 bar |
| With hand operation (EF007378) | No |
| Rated voltage Ue at DC (EF007031) | 0 V |
| Max. operating pressure (EF020449) | 15000 hPa |
| Adjustable current range (EF008211) | 0 A |
| Degree of protection (IP) (EF005474) | IP65 |
| With manual on/off switch (EF001408) | No |
| Degree of protection (NEMA) (EF011959) | Other |
| Type of electric connection (EF003961) | Screw connection |
| Rated voltage Ue at AC 50 Hz (EF007029) | 0 V |
| Rated voltage Ue at AC 60 Hz (EF007030) | 0 V |
| Suitable as 2-point controller (EF007226) | Yes |
| Pressure-switching differential (EF008261) | 0 bar |
| Switching capacity at AC-3, 240 V (EF001409) | 0 kA |
| End value measuring range pressure (EF007134) | 0 Pa |
| Rated operation power at AC-3, 400 V (EF001364) | 0 kW |
| Initial value measuring range pressure (EF006812) | 0 Pa |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 0 A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 0 A |
| Number of normally open contacts as main contact (EF001374) | 0 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
Product Description
Switched pressure switch 1 15 bar
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
