MCR-SWS-I

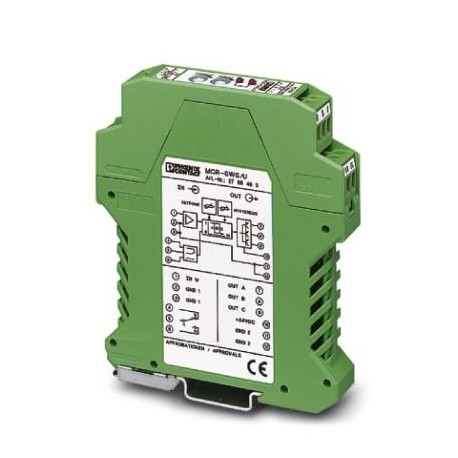

MCR-SWS-I 2766478 PHOENIX CONTACT Limit value switches
$0.00USD
3778 in stock
Key Specifications
GTIN:4017918066727
Note:Made to Order (non-returnable)
Orderkey:2766478
Catalog page:Page 147 (C-7-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918066727 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2766478 |
| Catalog page | Page 147 (C-7-2013) |
| Depth (Note) | 114.5 mm |
| Packing unit | 1 pc |
| Width (Note) | 17.5 mm |
| Height (Note) | 99 mm |
| Country of origin | DE (Germany) |
| Custom tariff number | 85437090 |
| (Ambient conditions) | 4 mA ... 20 mA |
| Conformance (General) | CE-compliant |
| Color (Connection data) | green |
| Output name (Input data) | Relay output |
| UL, USA/Canada (General) | UL 508 Recognized |
| Contact type (Input data) | 1 PDT |
| Screw thread (Power supply) | M3 |
| Status display (Input data) | LED |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Conformance (Connection data) | CE-compliant |
| Contact material (Input data) | AgNi 0,15 + HTV (hard gold-plated) |
| Number of outputs (Input data) | 3 |
| Stripping length (Power supply) | 8 mm |
| Connection method (Power supply) | Pluggable screw connection |
| UL, USA/Canada (Connection data) | UL 508 Recognized |
| No. of channels (Connection data) | 1 |
| Output voltage range (Input data) | 20 V DC ... 30 V DC |
| Housing material (Connection data) | Polyamide PA non-reinforced |
| Max. switching current (Input data) | 2 A |
| Mounting position (Connection data) | any |
| Setting option (Ambient conditions) | Setting potentiometer, scaled 270° potentiometer |
| Continuous load current (Input data) | 100 mA |
| Mechanical service life (Input data) | 107cycles |
| Weight per Piece (excluding packing) | 154.000 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Maximum switching voltage (Input data) | 250 V AC (30 V DC) |
| Max. input current (Ambient conditions) | 22 mA |
| Supply voltage range (Switching output) | 20 V DC ... 30 V DC |
| Internal hysteresis (Ambient conditions) | ± 60 µA (around the lower/upper switching point) |
| Step response (10-90%) (Connection data) | < 25 ms |
| Current input signal (Ambient conditions) | 0 mA ... 20 mA |
| Connection in acc. with standard (General) | CUL |
| Max. current consumption (Switching output) | typ. 60 mA |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 65 °C |
| Description of the input (Ambient conditions) | Current input |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Conductor cross section AWG max. (Power supply) | 14 |
| Conductor cross section AWG min. (Power supply) | 24 |
| Conductor cross section solid max. (Power supply) | 2.5 mm² |
| Conductor cross section solid min. (Power supply) | 0.2 mm² |
| Maximum temperature coefficient (Connection data) | ≤ 0.02 %/K |
| Input resistance current input (Ambient conditions) | ≤ 120 Ω |
| Conductor cross section flexible max. (Power supply) | 2.5 mm² |
| Conductor cross section flexible min. (Power supply) | 0.2 mm² |
| Setting range of the hysteresis (Ambient conditions) | 0.2 mA ... 20 mA (setting accuracy: ± 60 µA) |
| Min setting range of the current threshold value (Ambient conditions) | 0 A ... 20 mA |
